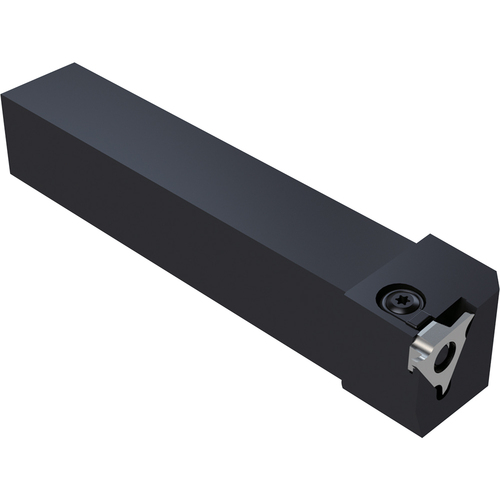

KGBASL2525M2215 EXTL GRVE

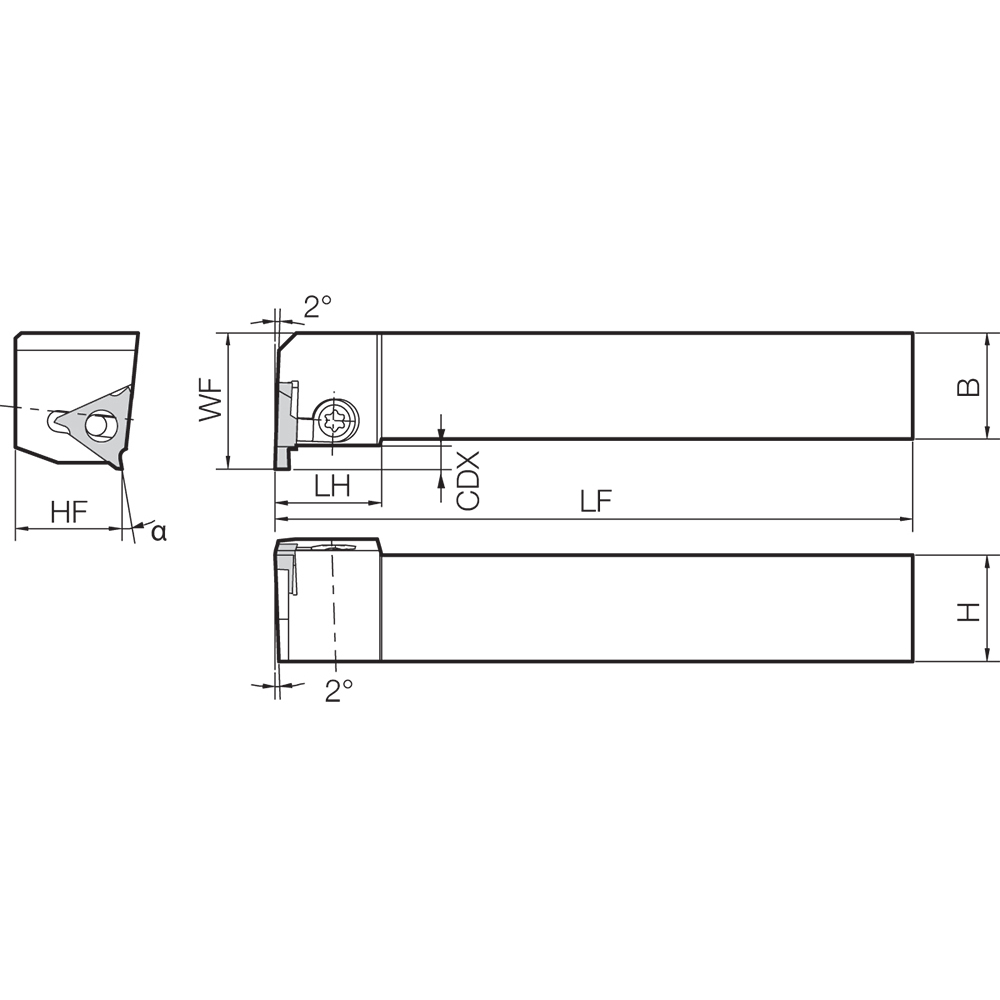

| Cutting Width Minimum (CWN) | 1.25 mm | Coolant Supply Property (CSP) | External |
| Cutting Width Maximum (CWX) | 2.3 mm | Application | Shallow Grooving |
| Cutting Depth Maximum (CDX) | 4 mm | Body Material | Steel |
| Shank Height (H) | 25 mm | Series/List # | KGBAS |
| Shank Width (B) | 25 mm | Measurement Type | Metric |
| Head Length (LH) | 25 mm | Cutting Position | External |
| Overall Length (OAL) | 150 mm | Shank Length (LS) | 125 mm |
| Cutting Direction (HAND) | Left Hand |
Product Features
| Family Description | Alternate Manufacture # KGBASL2525M2215 | Country of Origin | China |
Shipping Info
Package Weight
1.7278
