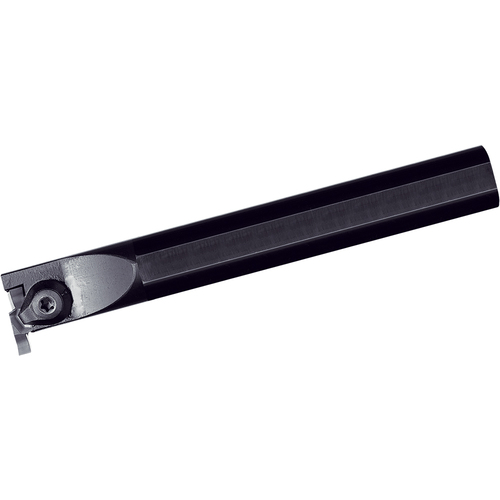

INTERNAL GROOVING HOLDER
| Cutting Width Minimum (CWN) | 2.8 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Width Maximum (CWX) | 3.4 mm | Coolant Supply Property (CSP) | External |
| Cutting Depth Maximum (CDX) | 5.5 mm | Application | Small Diameter Grooving |
| Shank Height (H) | 19 mm | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 25 mm | Series/List # | GIV |
| Head Length (LH) | 25 mm | Measurement Type | Metric |
| Overall Length (OAL) | 200 mm | Cutting Position | Internal |
| Connection Diameter Machine Side (DCONMS) | 20 mm |
Product Features
| Family Description | Alternate Manufacture # GIVR25201CE | Country of Origin | Japan |
Shipping Info
Package Weight
1.2324
