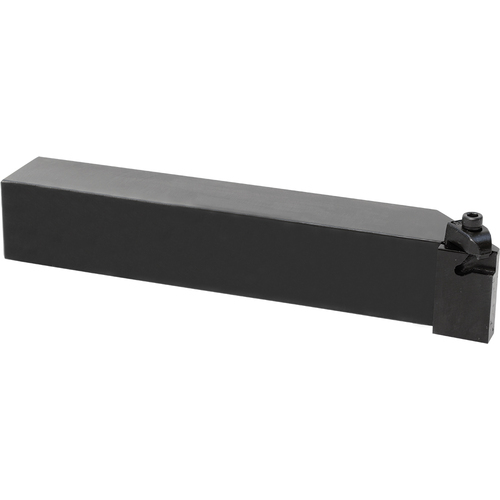

KKCL 123C GROOVING HOLDER
Grooving Toolholder ; 5″ OAL ; 3/4″ Shank Height ; 3/4″ Shank Width ; 0.0311″ CW Min. ; 0.189″ CW Max. ; 0.2102″ Max Depth ; Left Hand ; Steel ; Series KKC

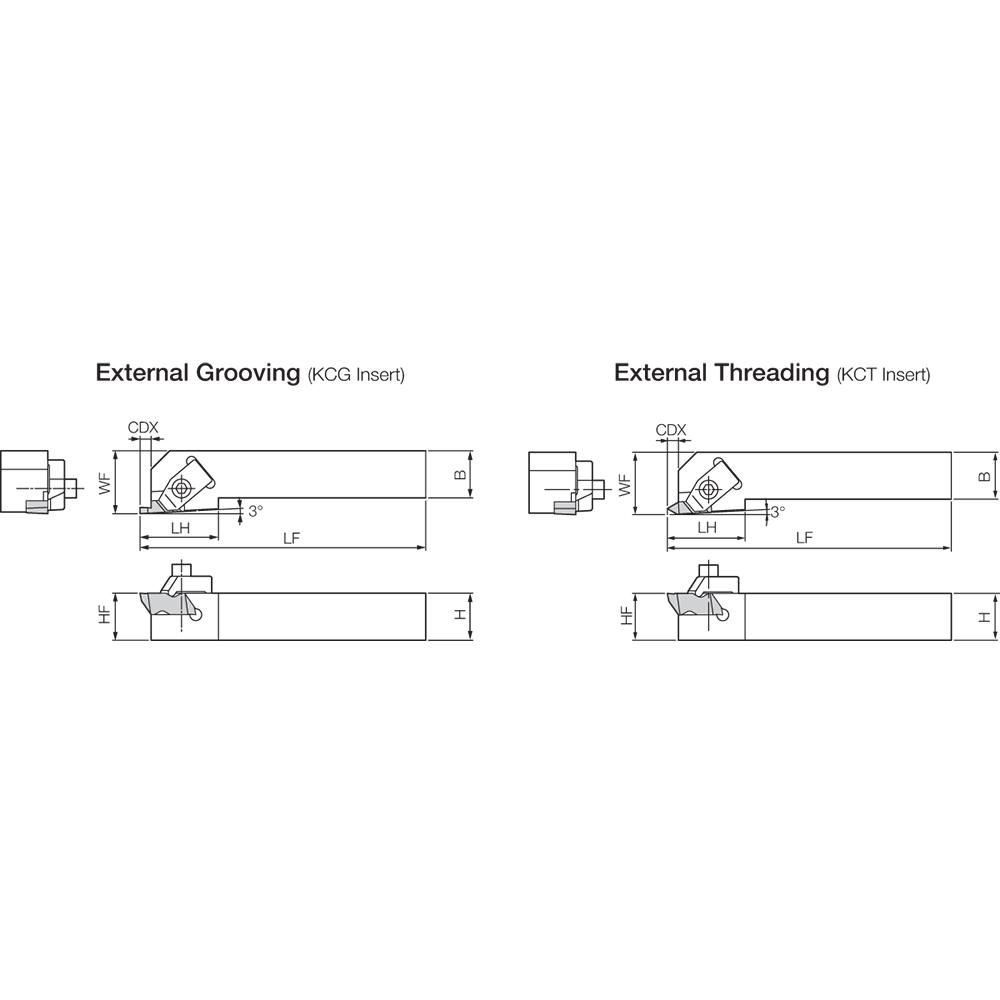

| Cutting Width Minimum (CWN) | 0.0311″ | Coolant Supply Property (CSP) | External |
| Cutting Width Maximum (CWX) | 0.189″ | Application | Shallow Grooving |
| Cutting Depth Maximum (CDX) | 0.2102″ | Body Material | Steel |
| Shank Height (H) | 3/4″ | Series/List # | KKC |
| Shank Width (B) | 3/4″ | Measurement Type | Inch |
| Head Length (LH) | 1-1/4″ | Cutting Position | External |
| Overall Length (OAL) | 5″ | Shank Length (LS) | 3-3/4″ |
| Cutting Direction (HAND) | Left Hand |
Product Features
| Family Description | Alternate Manufacture # KKCL123C | Country of Origin | USA |
Shipping Info
Package Weight
.8500
