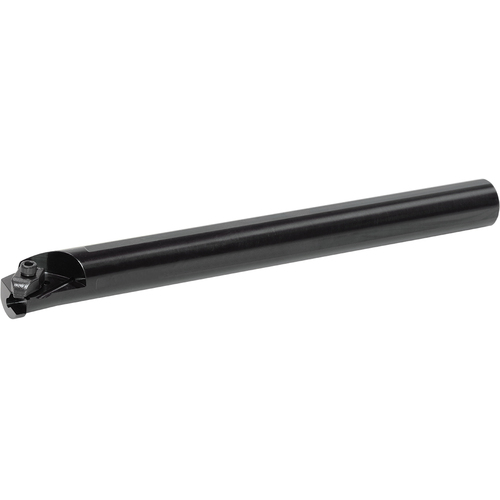

A16X-KKCR3 INT GROOV HLDR
Grooving Toolholder ; 9″ OAL ; 0.91″ Shank Height ; 1″ Shank Dia. ; 0.0311″ CW Min. ; 0.189″ CW Max. ; 0.0098″ Max Depth ; Right Hand ; Steel ; Series Cera-Notch
| Cutting Width Minimum (CWN) | 0.0311″ | Cutting Direction (HAND) | Right Hand |
| Cutting Width Maximum (CWX) | 0.189″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Depth Maximum (CDX) | 0.0098″ | Application | Large Diameter Shallow Grooving |
| Shank Height (H) | 0.91″ | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 1-3/8″ | Series/List # | Cera-Notch |
| Head Length (LH) | 1-3/4″ | Measurement Type | Inch |
| Overall Length (OAL) | 9″ | Cutting Position | Internal |
| Connection Diameter Machine Side (DCONMS) | 1″ |
Product Features
| Family Description | Alternate Manufacture # A16XKKCR3 | Country of Origin | USA |
Shipping Info
Package Weight
1.7500
