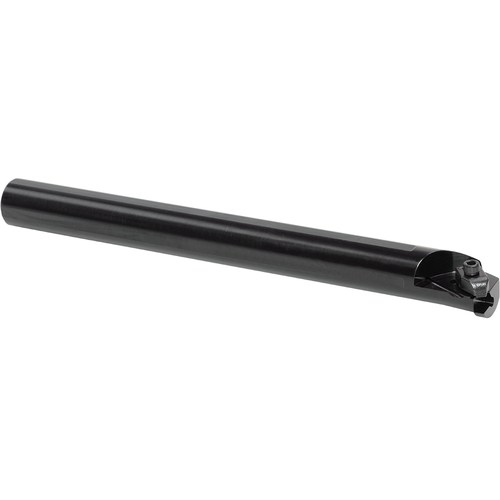

A16T-KKCL2 INT GROOV HLDR
Grooving Toolholder ; 12″ OAL ; 0.91″ Shank Height ; 1″ Shank Dia. ; 0.0311″ CW Min. ; 0.1252″ CW Max. ; 0.0059″ Max Depth ; Left Hand ; Steel ; Series Cera-Notch

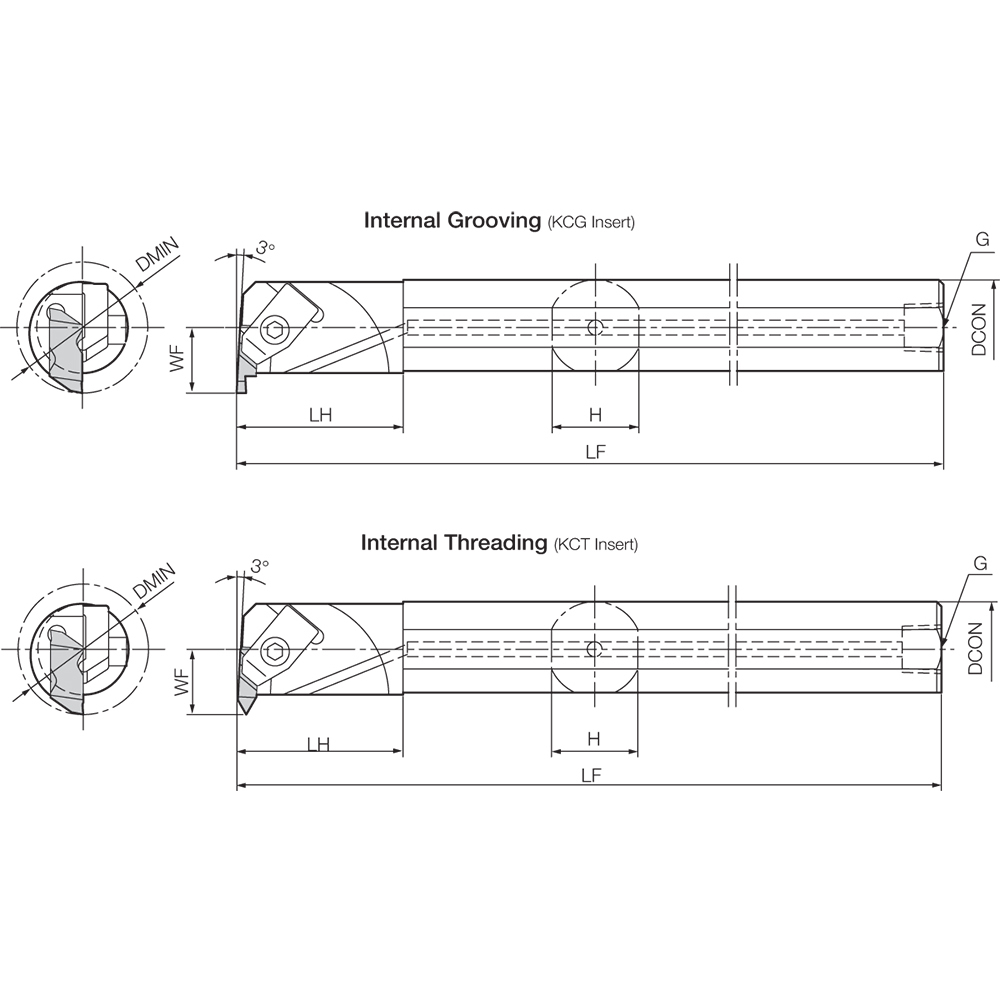

| Cutting Width Minimum (CWN) | 0.0311″ | Cutting Direction (HAND) | Left Hand |
| Cutting Width Maximum (CWX) | 0.1252″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Depth Maximum (CDX) | 0.0059″ | Application | Large Diameter Shallow Grooving |
| Shank Height (H) | 0.91″ | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 1-3/8″ | Series/List # | Cera-Notch |
| Head Length (LH) | 1.1″ | Measurement Type | Inch |
| Overall Length (OAL) | 12″ | Cutting Position | Internal |
| Connection Diameter Machine Side (DCONMS) | 1″ |
Product Features
| Family Description | Alternate Manufacture # A16TKKCL2 | Country of Origin | USA |
Shipping Info
Package Weight
2.3500
