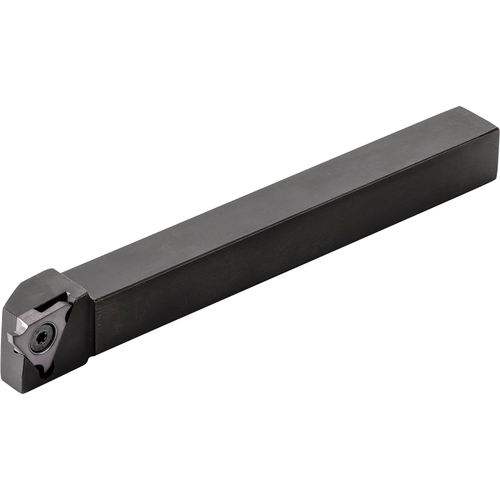

KGBFR 1212JX16F EXTL GRVE

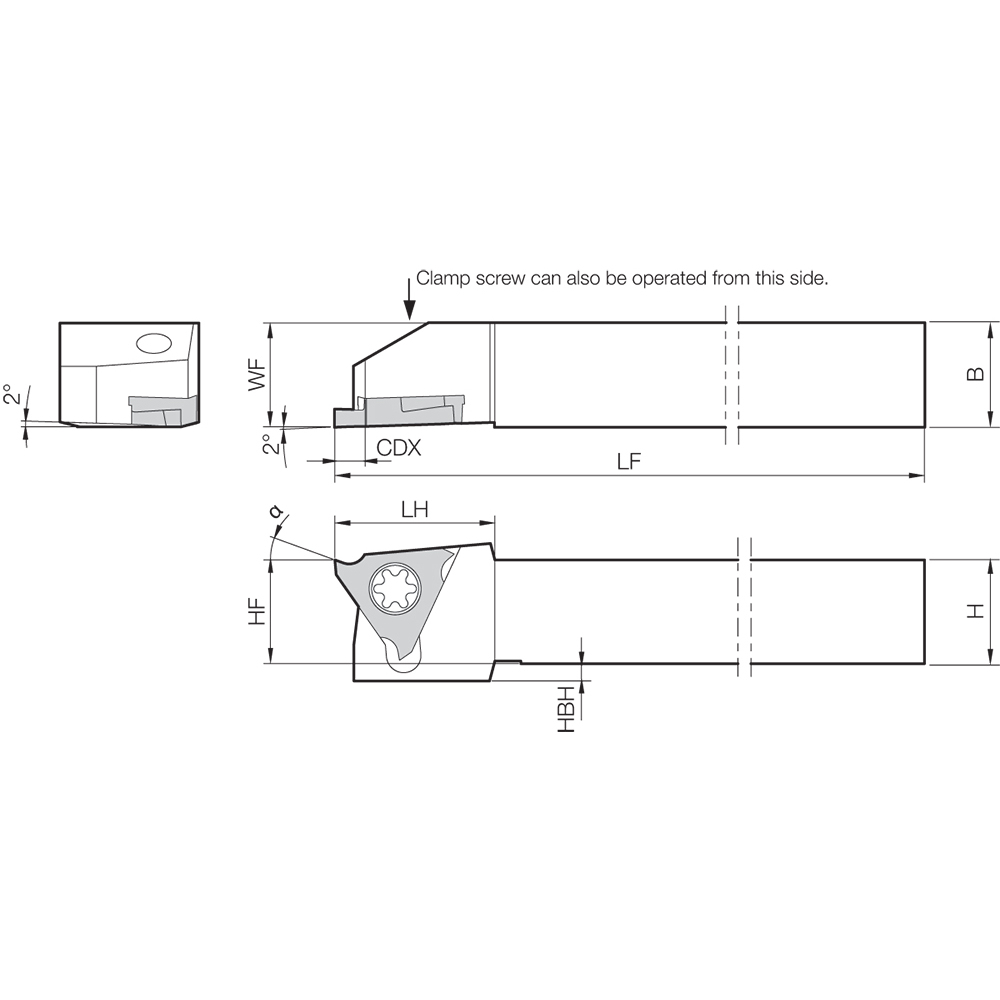

| Cutting Width Minimum (CWN) | 0.25 mm | Coolant Supply Property (CSP) | External |
| Cutting Width Maximum (CWX) | 3 mm | Application | Swiss Grooving |
| Cutting Depth Maximum (CDX) | 3 mm | Body Material | Steel |
| Shank Height (H) | 12 mm | Series/List # | KGBF |
| Shank Width (B) | 12 mm | Measurement Type | Metric |
| Head Length (LH) | 18.5 mm | Cutting Position | External |
| Overall Length (OAL) | 120 mm | Shank Length (LS) | 101.5 mm |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | Alternate Manufacture # KGBFR1212JX16F | Country of Origin | China |
Shipping Info
Package Weight
.3252
