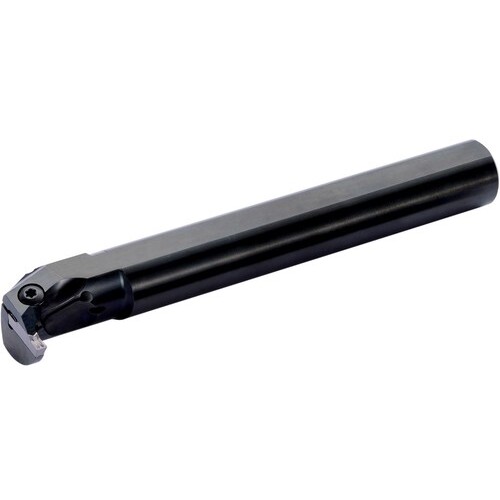

KGDIR 20B5 INT GROOV HLDR
Grooving Toolholder ; 8-1/2″ OAL ; 1.1417″ Shank Height ; 1-1/4″ Shank Dia. ; 0.1969″ CW Min. ; 0.1969″ CW Max. ; 0.4331″ Max Depth ; Right Hand ; Steel ; Series KGDI
| Cutting Width Minimum (CWN) | 0.1969″ | Cutting Direction (HAND) | Right Hand |
| Cutting Width Maximum (CWX) | 0.1969″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Depth Maximum (CDX) | 0.4331″ | Application | Grooving |
| Shank Height (H) | 1.1417″ | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 1.5748″ | Series/List # | KGDI |
| Head Length (LH) | 1.9685″ | Measurement Type | Inch |
| Overall Length (OAL) | 8-1/2″ | Cutting Position | Internal |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ |
Product Features
| Family Description | Alternate Manufacture # KGDIR20B5 | Country of Origin | Japan |
Shipping Info
Package Weight
2.1934
