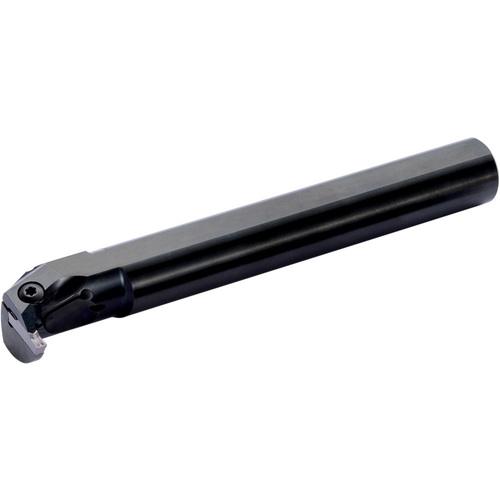

KGDIR 10B3 INT GROOV HLDR
Grooving Toolholder ; 6″ OAL ; 0.5906″ Shank Height ; 5/8″ Shank Dia. ; 0.1181″ CW Min. ; 0.1181″ CW Max. ; 0.2165″ Max Depth ; Right Hand ; Steel ; Series KGDI

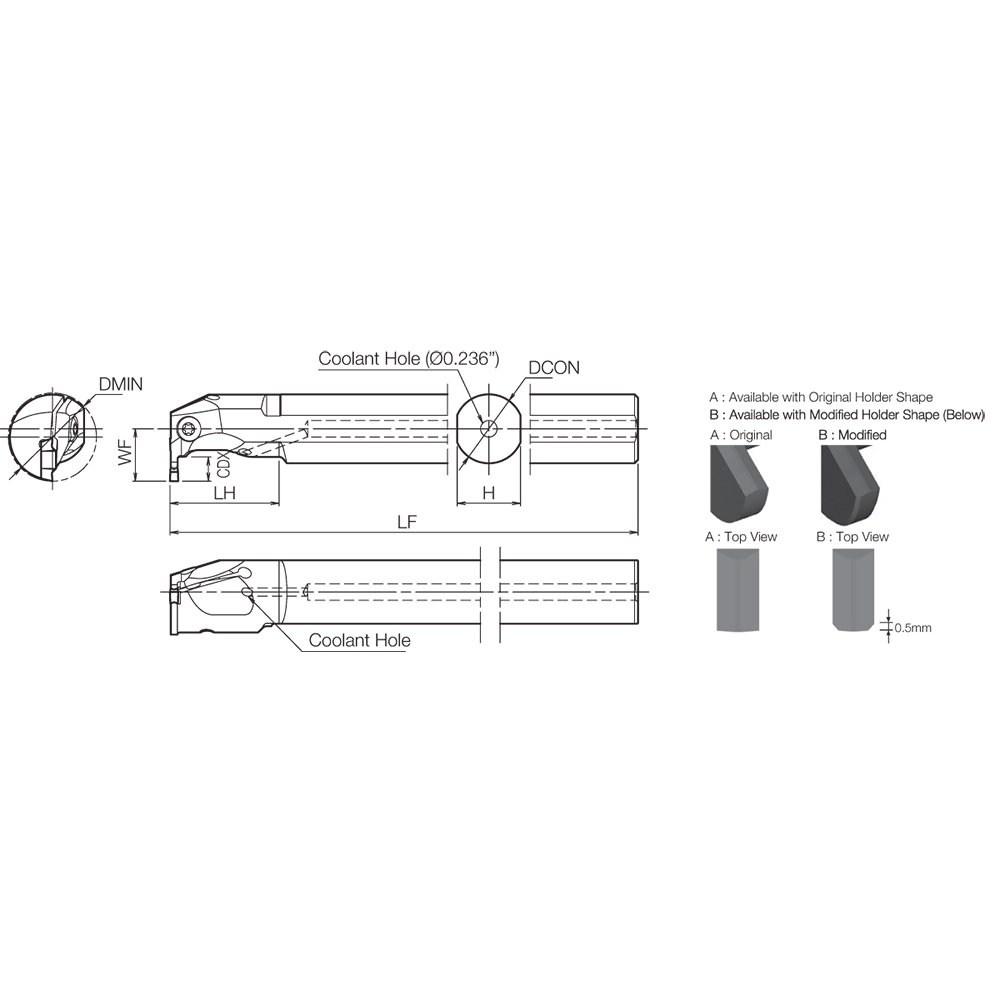

| Cutting Width Minimum (CWN) | 0.1181″ | Cutting Direction (HAND) | Right Hand |
| Cutting Width Maximum (CWX) | 0.1181″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Depth Maximum (CDX) | 0.2165″ | Application | Grooving |
| Shank Height (H) | 0.5906″ | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 0.7874″ | Series/List # | KGDI |
| Head Length (LH) | 0.9843 | Measurement Type | Inch |
| Overall Length (OAL) | 6″ | Cutting Position | Internal |
| Connection Diameter Machine Side (DCONMS) | 5/8″ |
Product Features
| Family Description | Alternate Manufacture # KGDIR10B3 | Country of Origin | Japan |
Shipping Info
Package Weight
.5035
