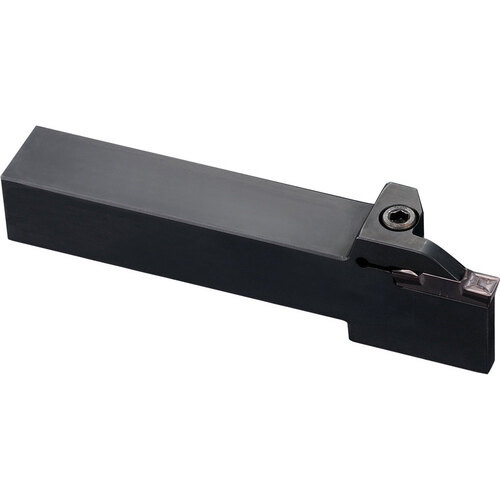

KGDL 122T17 EXTL GROOVE
Grooving Toolholder ; 4.92″ OAL ; 3/4″ Shank Height ; 3/4″ Shank Width ; 0.0787″ CW Min. ; 0.1181″ CW Max. ; 0.6693″ Max Depth ; Left Hand ; Steel ; Series KGD
| Cutting Width Minimum (CWN) | 0.0787″ | Coolant Supply Property (CSP) | External |
| Cutting Width Maximum (CWX) | 0.1181″ | Application | Grooving | Cut-Off |
| Cutting Depth Maximum (CDX) | 0.6693″ | Body Material | Steel |
| Shank Height (H) | 3/4″ | Series/List # | KGD |
| Shank Width (B) | 3/4″ | Measurement Type | Inch |
| Head Length (LH) | 1.28″ | Cutting Position | External |
| Overall Length (OAL) | 4.92″ | Shank Length (LS) | 3.64″ |
| Cutting Direction (HAND) | Left Hand |
Product Features
| Family Description | Alternate Manufacture # KGDL122T17 | Country of Origin | China |
Shipping Info
Package Weight
.3560
