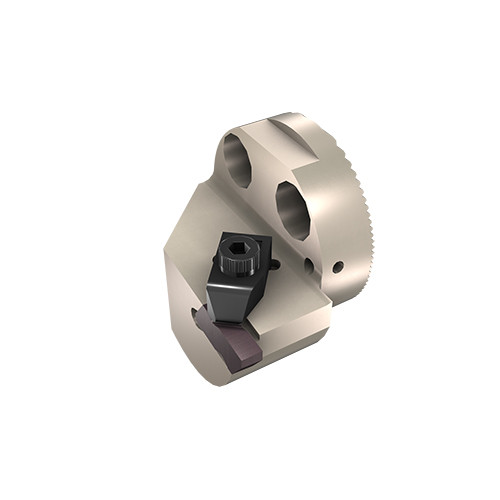

HS32-FLER3W
Grooving Toolholder ; 1.34″ OAL ; 1.26″ Shank Height ; 1-1/4″ Shank Dia. ; 0.118″ CW Min. ; 0.126″ CW Max. ; 0.787″ Max Depth ; Steel
| Connection Diameter Machine Side (DCONMS) | 1.26″ | Cutting Depth Maximum (CDX) | 0″ |
| Overall Length (OAL) | 1.34″ | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 1.73″ | Measurement Type | Inch |
| Application | | Int Threading/Grooving Flo Loc | | Neck Diameter (DN) | 1-1/4″ |
| Cutting Direction (HAND) | Right Hand | Functional Width (WF) | 0.866″ |
| Head Length (LH) | 1.34″ |
Product Features
| Family Description | Interchangeable Right Hand Heads with Serrated Connection for FloLock Inserts with Left Hand Clamping Notch | Country of Origin | USA |
Shipping Info
Package Weight
0.000
