08 IR60007 PR1115 INSERT ALT MFG #08IR60007PR1115

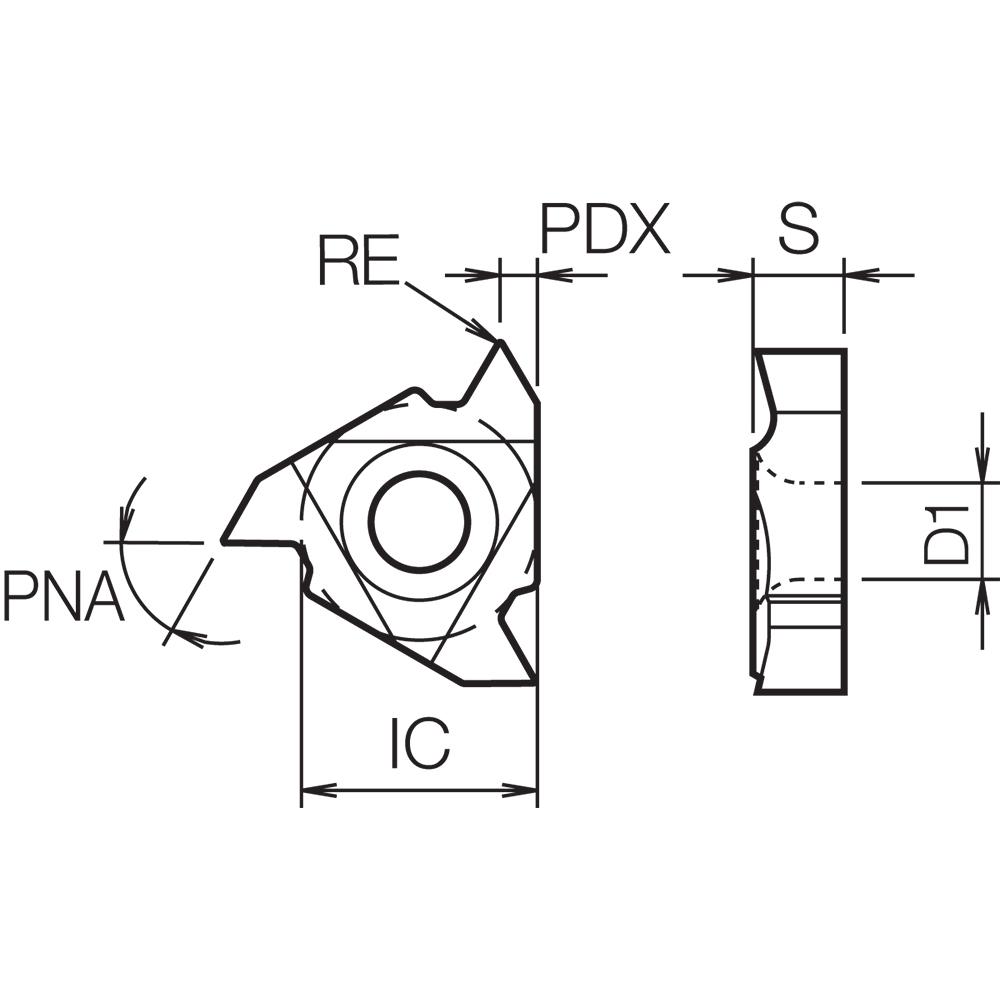

Laydown Threading Insert ; 1 mm - 1.75 mm TP ; 20-16 TPI ; 3/16″ IC ; Metric (M) | Unified (UN) ; Carbide ; PR1115 ; TiAlN
| Thread Standard | Metric (M) | Unified (UN) | Application | Internal Threading |
| Inscribed Circle Diameter (IC) | 3/16″ | Applicable Material | | Steel | |
| Thread Pitch (TP) | 1 mm – 1.75 mm | Insert Style | 8 |
| Threads per Inch (TPI) | 20-16 | Mounting Style | Clamp |
| Corner Radius (RE) | 0.003″ | Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 0.0945″ | Angle | 60 Degrees |
| Grade | PR1115 | Cutting Item Count (CICT) | 3 |
| Coating | TiAlN | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Hole Diameter | 0.091″ |
| Cutting Position | Internal | Insert Seat Size Code (SSC) | 60007 |
Product Features
| Family Description | Alternate Manufacture # 08IR60007PR1115 | Country of Origin | Japan |
Shipping Info
Package Weight
.0373
