16 ERG55TF PR1115 INSERT ALT MFG #16ERG55TFPR1115
Laydown Threading Insert ; 14-8 TPI ; 3/8″ IC ; Parallel Pipe [G (PF)] | Tapered Pipe [R | (PT) | (BSPT)] | Whitworth (W) ; Carbide ; PR1115 ; TiAlN
| Thread Standard | Parallel Pipe [G (PF)] | Tapered Pipe [R | (PT) | (BSPT)] | Whitworth (W) | Applicable Material | | Steel | |

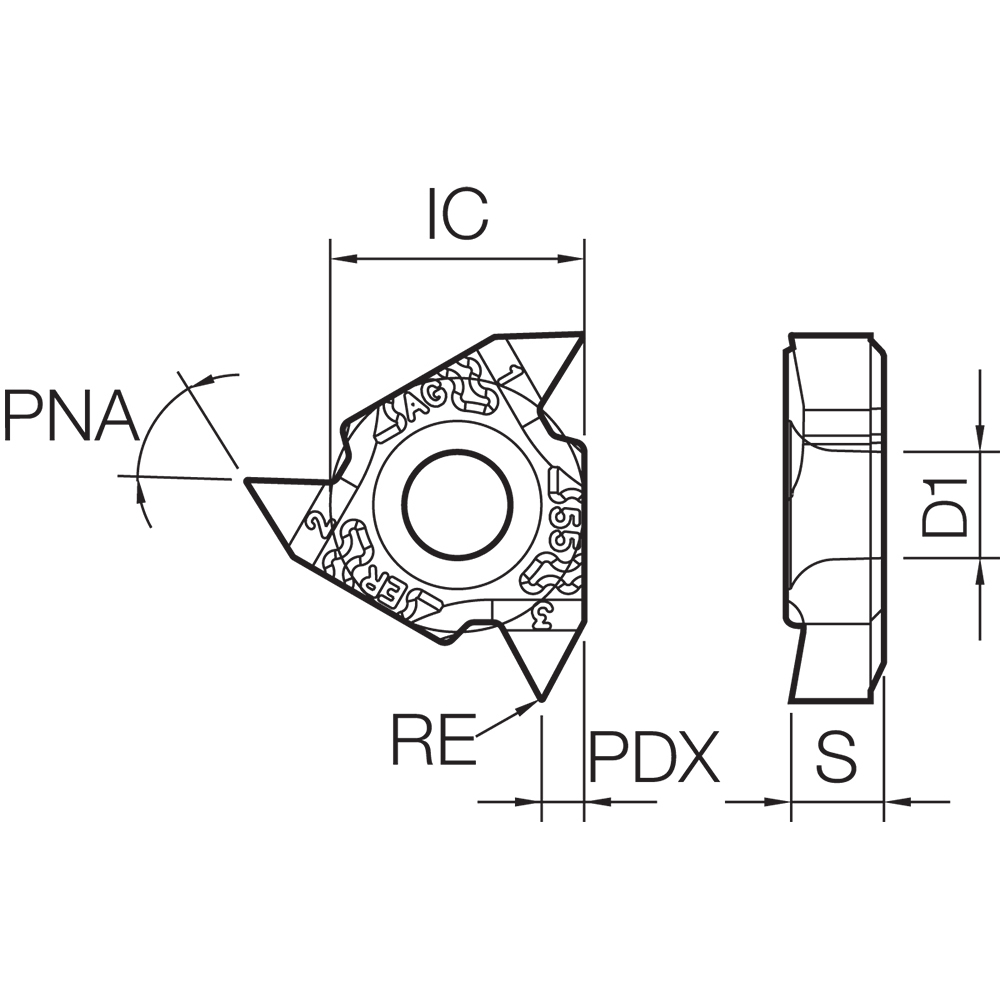

| Inscribed Circle Diameter (IC) | 3/8″ | Insert Style | 16 |
| Threads per Inch (TPI) | 14-8 | Mounting Style | Clamp |
| Corner Radius (RE) | 0.009″ | Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 0.145″ | Chip Breaker Type | TF |
| Grade | PR1115 | Angle | 55 Degrees |
| Coating | TiAlN | Cutting Item Count (CICT) | 3 |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Cutting Position | External | Hole Diameter | 0.157″ |
| Application | External Threading | Insert Seat Size Code (SSC) | G55 |
Product Features
| Family Description | Alternate Manufacture # 16ERG55TFPR1115 | Country of Origin | Japan |
Shipping Info
Package Weight
.0711
