16 ER28BSPTTF PR1115 ALT MFG #16ER28BSPTTFPR1115
Laydown Threading Insert ; 28 TPI ; 3/8″ IC ; Tapered Pipe [R | Rc(PT) | (BSPT)] ; Carbide ; PR1115 ; TiAlN

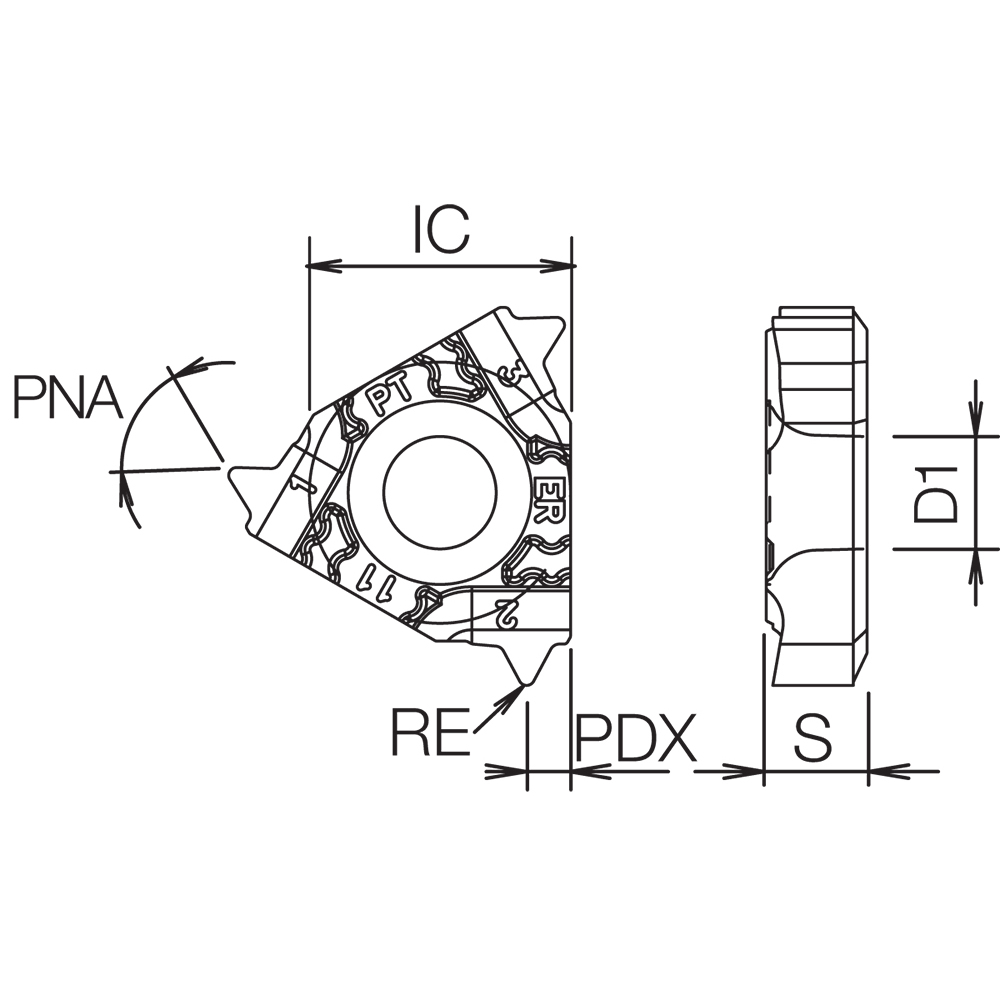

| Thread Standard | Tapered Pipe [R | Rc(PT) | (BSPT)] | Applicable Material | | Steel | |
| Inscribed Circle Diameter (IC) | 3/8″ | Insert Style | 16 |
| Threads per Inch (TPI) | 28 | Mounting Style | Clamp |
| Corner Radius (RE) | 0.0039″ | Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 0.145″ | Chip Breaker Type | TF |
| Grade | PR1115 | Angle | 55 Degrees |
| Coating | TiAlN | Cutting Item Count (CICT) | 3 |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Cutting Position | External | Hole Diameter | 0.157″ |
| Application | External Threading | Insert Seat Size Code (SSC) | 28 |
Product Features
| Family Description | Alternate Manufacture # 16ER28BSPTTFPR1115 | Country of Origin | Japan |
Shipping Info
Package Weight
.0821
