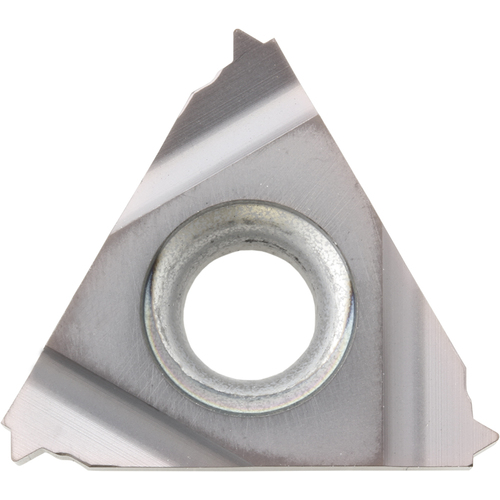

16 IR100ISO GW15 INSERT ALT MFG #16IR100ISOGW15
Laydown Threading Insert ; 1 mm TP ; 9.53 mm IC ; Metric (M) ; Carbide ; GW15 ; Uncoated
| Thread Standard | Metric (M) | Applicable Material | | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |

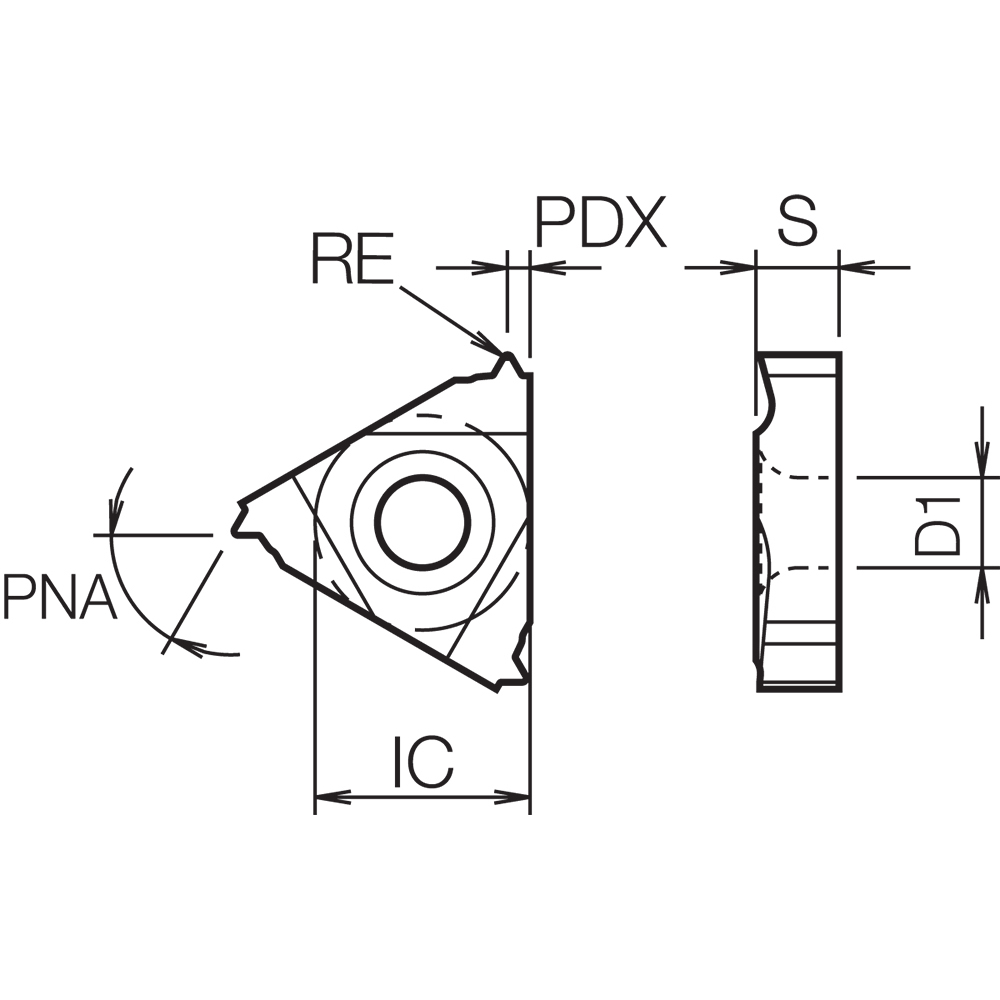

| Inscribed Circle Diameter (IC) | 9.53 mm | Insert Style | 16 |
| Thread Pitch (TP) | 1 mm | Mounting Style | Clamp or Screw |
| Corner Radius (RE) | 0.07 mm | Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 3.68 mm | Angle | 60 Degrees |
| Grade | GW15 | Cutting Item Count (CICT) | 3 |
| Coating | Uncoated | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Hole Diameter | 4 mm |
| Cutting Position | Internal | Insert Seat Size Code (SSC) | 100 |
| Application | Internal Threading |
Product Features
| Family Description | Alternate Manufacture # 16IR100ISOGW15 | Country of Origin | Japan |
Shipping Info
Package Weight
.0849
