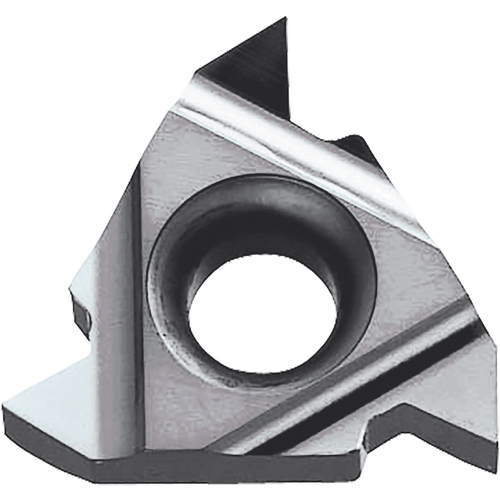

22 ERN60 GW15 INSERT ALT MFG #22ERN60GW15
Laydown Threading Insert ; 3.5 mm - 5 mm TP ; 7-5 TPI ; 1/2″ IC ; Metric (M) | Unified (UN) ; Carbide ; GW15 ; Uncoated
| Thread Standard | Metric (M) | Unified (UN) | Application | External Threading |

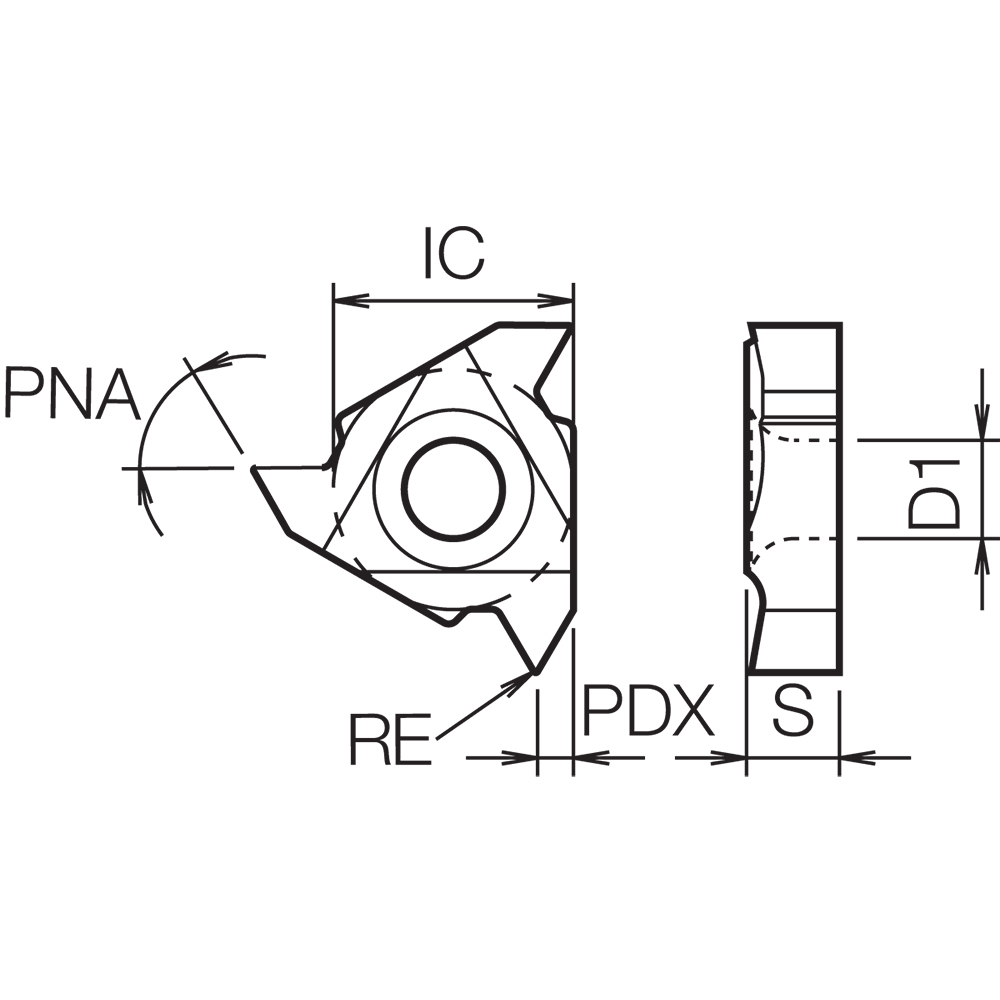

| Inscribed Circle Diameter (IC) | 1/2″ | Applicable Material | | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Thread Pitch (TP) | 3.5 mm – 5 mm | Insert Style | 22 |
| Threads per Inch (TPI) | 7-5 | Mounting Style | Clamp |
| Corner Radius (RE) | 0.019″ | Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 0.193″ | Angle | 60 Degrees |
| Grade | GW15 | Cutting Item Count (CICT) | 3 |
| Coating | Uncoated | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Hole Diameter | 0.191″ |
| Cutting Position | External | Insert Seat Size Code (SSC) | N60 |
Product Features
| Family Description | Alternate Manufacture # 22ERN60GW15 | Country of Origin | Japan |
Shipping Info
Package Weight
.1984
