16 ER150ISOTF PR1115 ALT MFG #16ER150ISOTFPR1115

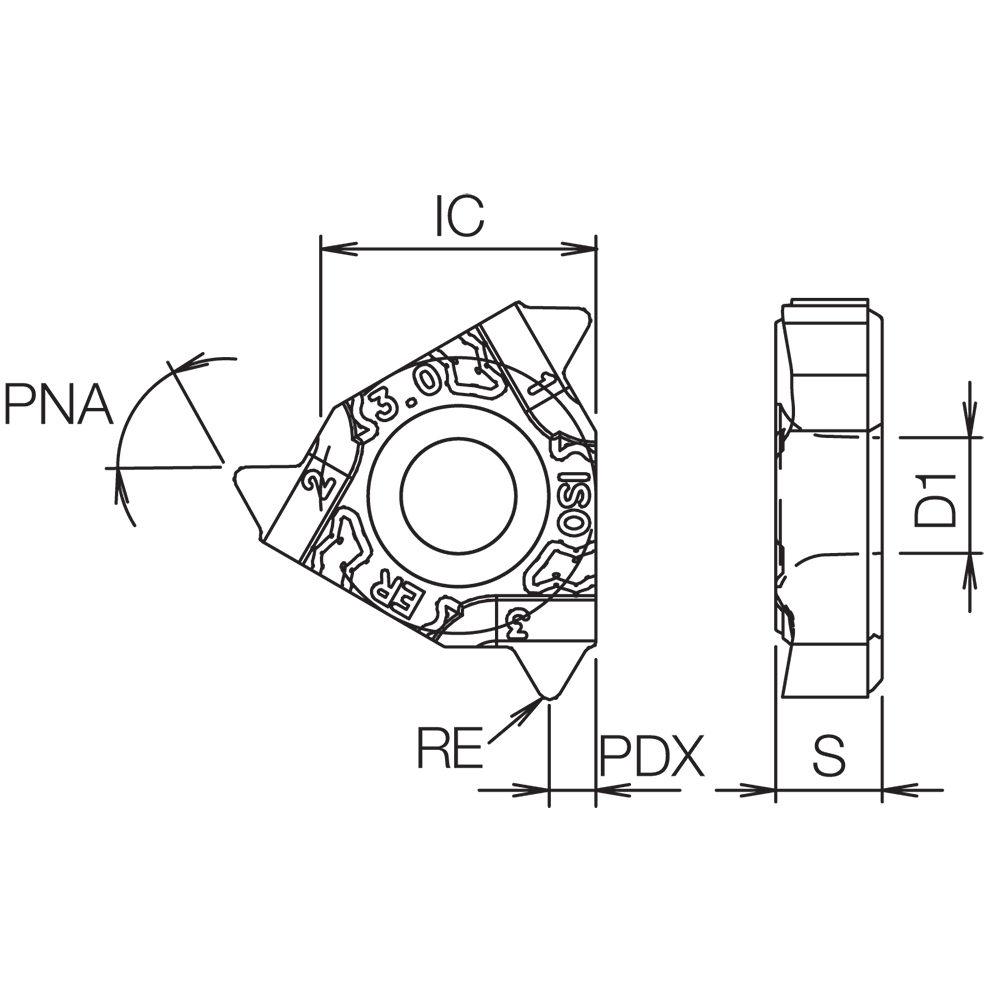

Laydown Threading Insert ; 1.5 mm TP ; 9.53 mm IC ; Metric (M) ; Carbide ; PR1115 ; TiAlN
| Thread Standard | Metric (M) | Applicable Material | | Steel | |
| Inscribed Circle Diameter (IC) | 9.53 mm | Insert Style | 16 |
| Thread Pitch (TP) | 1.5 mm | Mounting Style | Clamp |
| Corner Radius (RE) | 0.19 mm | Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 3.68 mm | Chip Breaker Type | TF |
| Grade | PR1115 | Angle | 60 Degrees |
| Coating | TiAlN | Cutting Item Count (CICT) | 3 |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Cutting Position | External | Hole Diameter | 4 mm |
| Application | External Threading | Insert Seat Size Code (SSC) | 150 |
Product Features
| Family Description | Alternate Manufacture # 16ER150ISOTFPR1115 | Country of Origin | Japan |
Shipping Info
Package Weight
.0809
