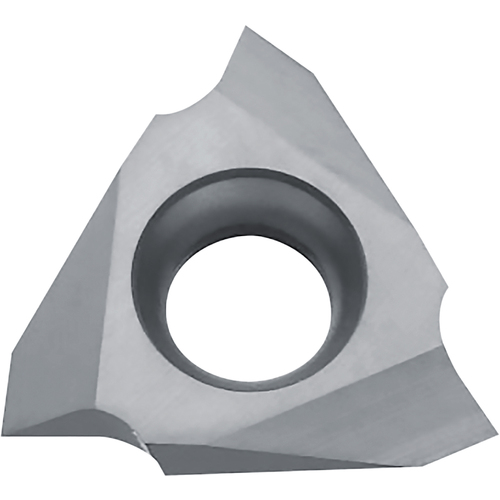

TT 32L6001 KW10 INSERT
Laydown Threading Insert ; 16-10 TPI ; 3/8″ IC ; Metric (M) | Unified (UN) ; Carbide ; KW10 ; Uncoated
| Thread Standard | Metric (M) | Unified (UN) | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Inscribed Circle Diameter (IC) | 3/8″ | Insert Style | TT |
| Threads per Inch (TPI) | 16-10 | Mounting Style | Screw |
| Insert Thickness (S) | 1/8″ | Cutting Direction (HAND) | Left Hand |
| Grade | KW10 | Angle | 60 Degrees |
| Coating | Uncoated | Cutting Item Count (CICT) | 3 |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Cutting Position | Internal & External | Hole Diameter | 0.173″ |
| Application | Internal & External Threading | Insert Seat Size Code (SSC) | 32 |
Product Features
| Family Description | Alternate Manufacture # TT32L6001KW10 | Country of Origin | Japan |
Shipping Info
Package Weight
.1323
