16 ERG60TQ PR1535 INSERT ALT MFG #16ERG60TQPR1535
Laydown Threading Insert ; 0.5 mm - 3 mm TP ; 48-8 TPI ; 3/8″ IC ; Metric (M) | Unified (UN) ; Carbide ; PR1535 ; MEGACOAT NANO ; Series PR15-Series
| Thread Standard | Metric (M) | Unified (UN) | Applicable Material | | Stainless Steel | Super-Alloys / Titanium | |

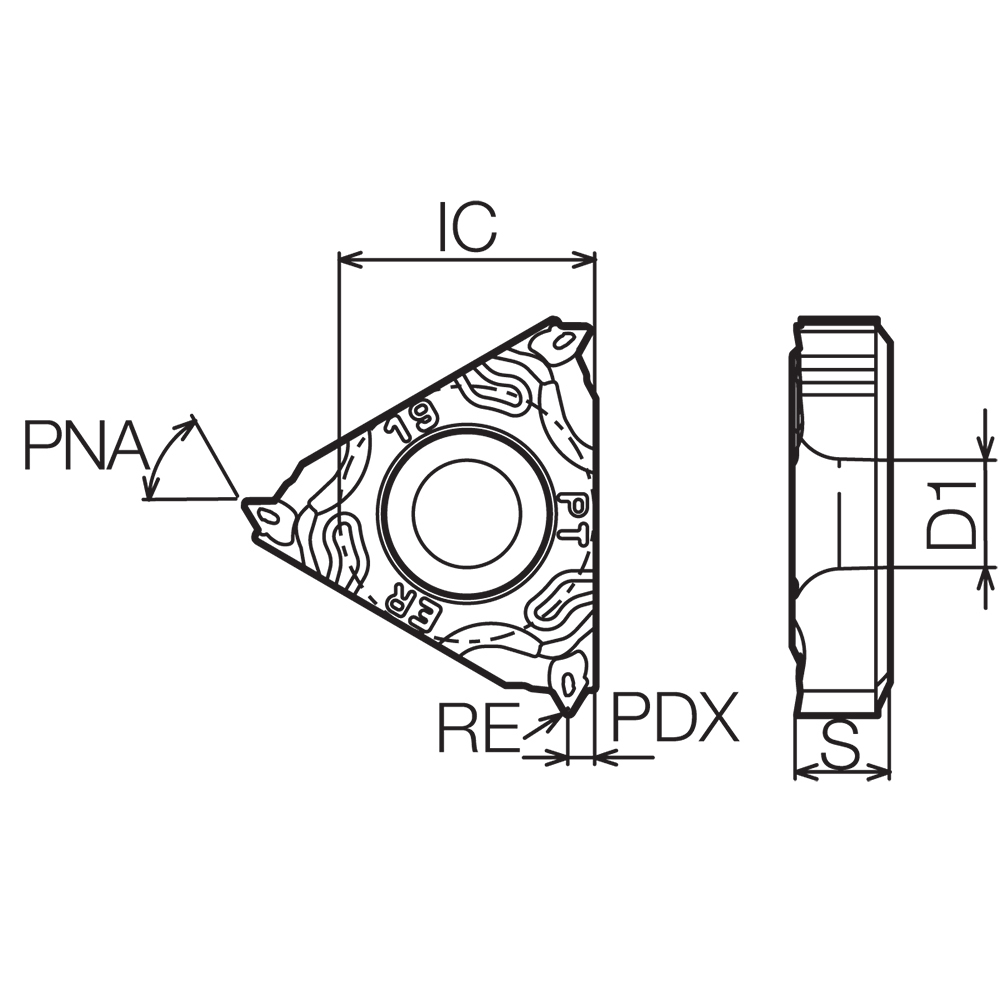

| Inscribed Circle Diameter (IC) | 3/8″ | Insert Style | 16 |
| Thread Pitch (TP) | 0.5 mm – 3 mm | Mounting Style | Clamp |
| Threads per Inch (TPI) | 48-8 | Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.009″ | Chip Breaker Type | TQ |
| Insert Thickness (S) | 0.145″ | Angle | 60 Degrees |
| Grade | PR1535 | Cutting Item Count (CICT) | 3 |
| Coating | MEGACOAT NANO | Series/List # | PR15-Series |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Cutting Position | External | Hole Diameter | 0.157″ |
| Application | External Threading | Insert Seat Size Code (SSC) | G60 |
Product Features
| Family Description | Alternate Manufacture # 16ERG60TQPR1535 | Country of Origin | Japan |
Shipping Info
Package Weight
0.081
