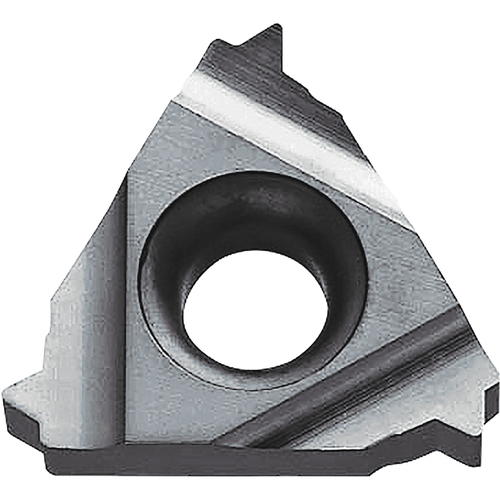

16 ER16UN TC60 INSERT ALT MFG #16ER16UNTC60
Laydown Threading Insert ; 16 TPI ; 3/8″ IC ; Unified (UN) ; Cermet ; TC60
| Thread Standard | Unified (UN) | Applicable Material | | Steel | |

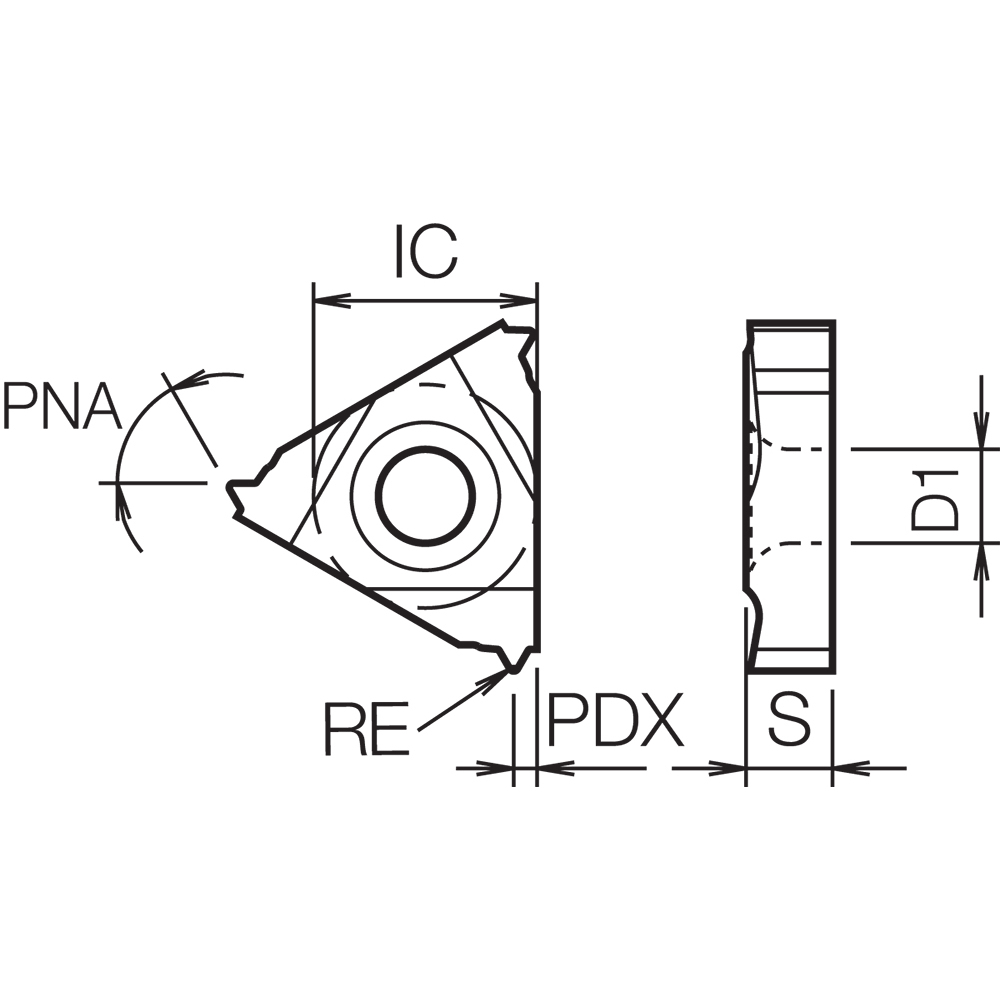

| Inscribed Circle Diameter (IC) | 3/8″ | Insert Style | 16 |
| Threads per Inch (TPI) | 16 | Mounting Style | Clamp or Screw |
| Corner Radius (RE) | 0.0079″ | Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 0.145″ | Angle | 60 Degrees |
| Grade | TC60 | Cutting Item Count (CICT) | 3 |
| Cutting Edge Material | Cermet | Measurement Type | Inch |
| Cutting Position | External | Hole Diameter | 0.1575″ |
| Application | External Threading | Insert Seat Size Code (SSC) | 32 |
Product Features
| Family Description | Alternate Manufacture # 16ER16UNTC60 | Country of Origin | Japan |
Shipping Info
Package Weight
.0818
