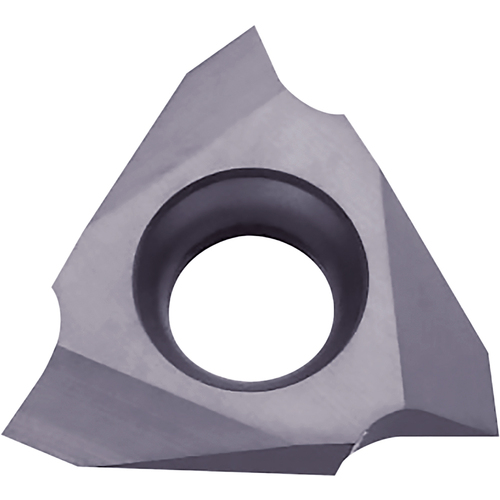

TT 32R5502 PR1115 INSERT
Laydown Threading Insert ; G,PT: - | W:16-18 TPI ; 3/8″ IC ; G (PF): Parallel Pipe | R, Rc (PT), (BSPT): Tapered Pipe | W: Whitworth ; Carbide ; PR1115 ; TiAlN
| Thread Standard | G (PF): Parallel Pipe | R, Rc (PT), (BSPT): Tapered Pipe | W: Whitworth | Applicable Material | | Steel | |

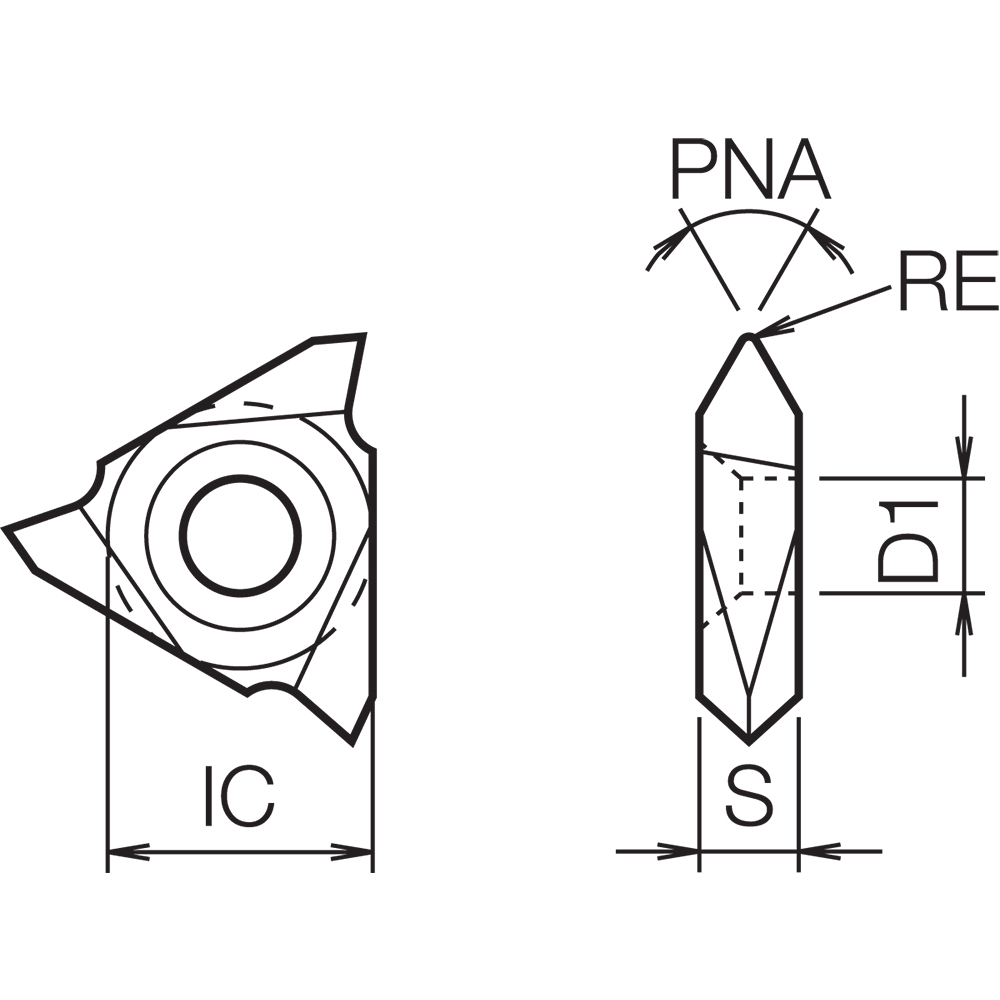

| Inscribed Circle Diameter (IC) | 3/8″ | Insert Style | TT |
| Threads per Inch (TPI) | G,PT: - | W:16-18 | Mounting Style | Screw |
| Insert Thickness (S) | 1/8″ | Cutting Direction (HAND) | Right Hand |
| Grade | PR1115 | Angle | 55 Degrees |
| Coating | TiAlN | Cutting Item Count (CICT) | 3 |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Cutting Position | Internal & External | Hole Diameter | 0.173″ |
| Application | Internal & External Threading | Insert Seat Size Code (SSC) | 32 |
Product Features
| Family Description | Alternate Manufacture # TT32R5502PR1115 | Country of Origin | Japan |
Shipping Info
Package Weight
.1424
