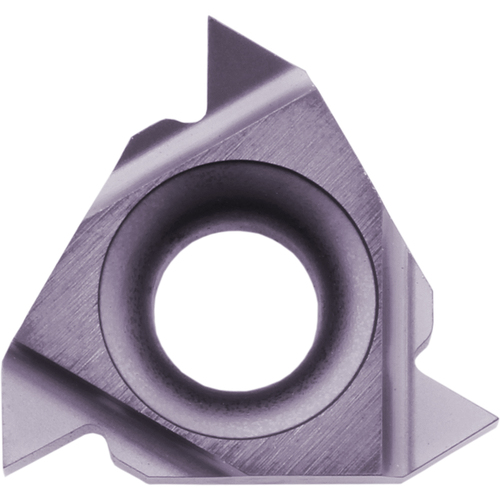

16 IRA60 PR1115 INSERT ALT MFG #16IRA60PR1115
Laydown Threading Insert ; 0.5 mm - 1.5 mm TP ; 48-16 TPI ; 3/8″ IC ; Metric (M) | Unified (UN) ; Carbide ; PR1115 ; TiAlN

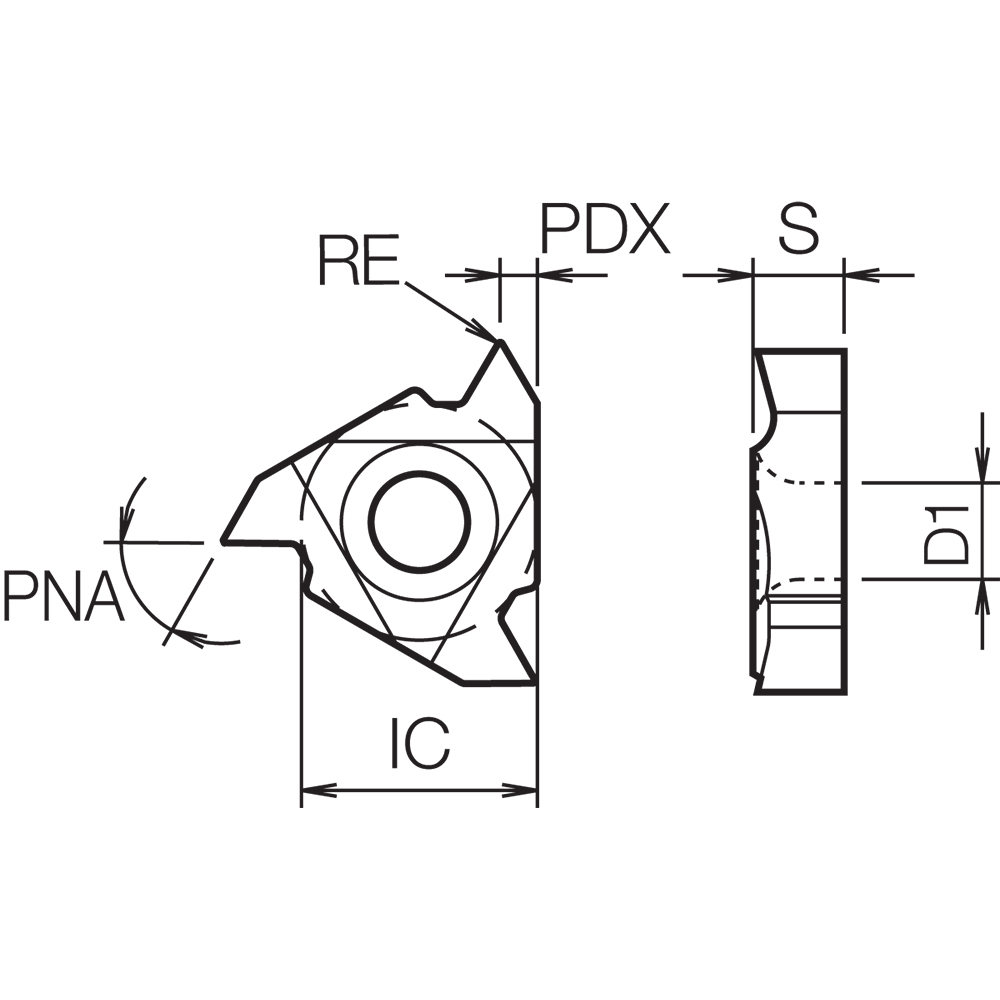

| Thread Standard | Metric (M) | Unified (UN) | Application | Internal Threading |
| Inscribed Circle Diameter (IC) | 3/8″ | Applicable Material | | Steel | |
| Thread Pitch (TP) | 0.5 mm – 1.5 mm | Insert Style | 16 |
| Threads per Inch (TPI) | 48-16 | Mounting Style | Clamp or Screw |
| Corner Radius (RE) | 0.001″ | Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 0.145″ | Angle | 60 Degrees |
| Grade | PR1115 | Cutting Item Count (CICT) | 3 |
| Coating | TiAlN | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Hole Diameter | 0.157″ |
| Cutting Position | Internal | Insert Seat Size Code (SSC) | A60 |
Product Features
| Family Description | Alternate Manufacture # 16IRA60PR1115 | Country of Origin | Japan |
Shipping Info
Package Weight
.0741
