16 IRA55 PR1115 INSERT ALT MFG #16IRA55PR1115
Laydown Threading Insert ; 40-16 TPI ; 3/8″ IC ; Parallel Pipe [G(PF)] | Tapered Pipe [Rc | (PT) | (BSPT)] | Whitworth (W) ; Carbide ; PR1115 ; TiAlN
| Thread Standard | Parallel Pipe [G(PF)] | Tapered Pipe [Rc | (PT) | (BSPT)] | Whitworth (W) | Applicable Material | | Steel | |

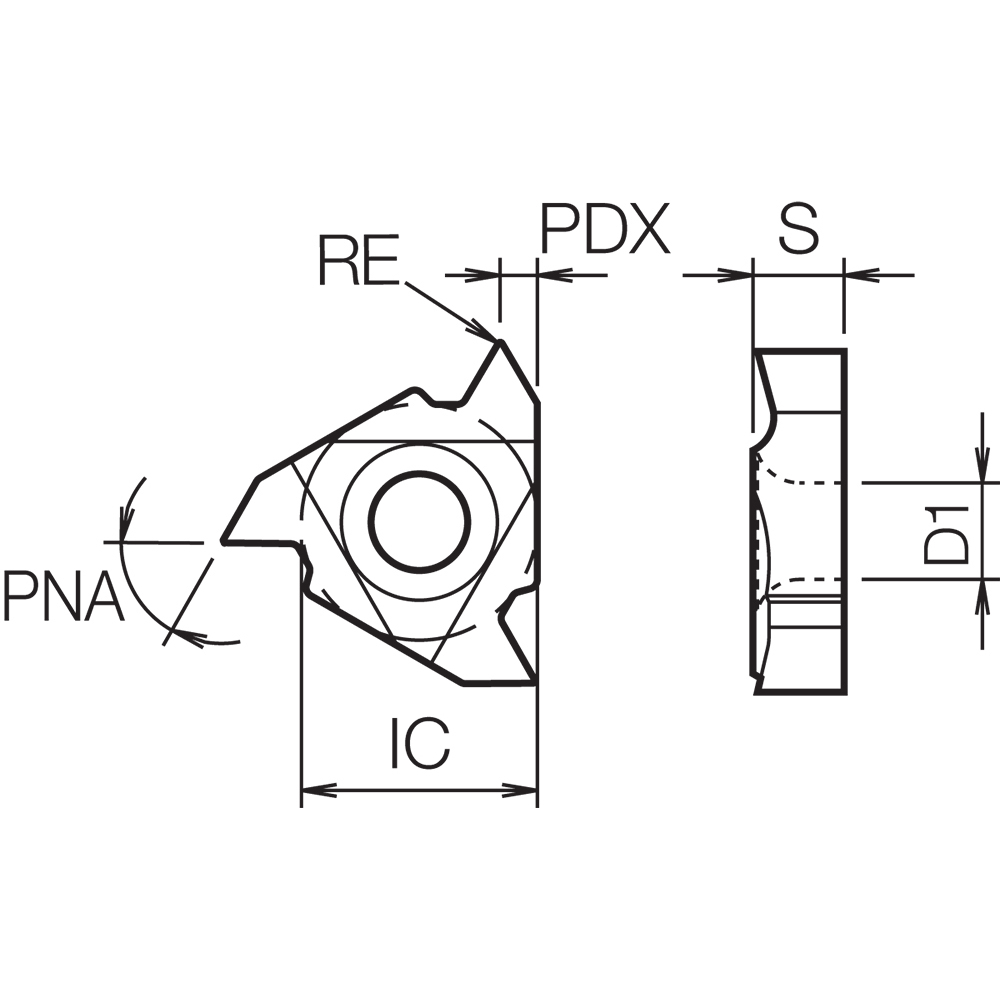

| Inscribed Circle Diameter (IC) | 3/8″ | Insert Style | 16 |
| Threads per Inch (TPI) | 40-16 | Mounting Style | Clamp or Screw |
| Corner Radius (RE) | 0.002″ | Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 0.145″ | Angle | 55 Degrees |
| Grade | PR1115 | Cutting Item Count (CICT) | 3 |
| Coating | TiAlN | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Hole Diameter | 0.157″ |
| Cutting Position | Internal | Insert Seat Size Code (SSC) | A55 |
| Application | Internal Threading |
Product Features
| Family Description | Alternate Manufacture # 16IRA55PR1115 | Country of Origin | Japan |
Shipping Info
Package Weight
.0741
