16 ER115NPT PR1115 INSERT ALT MFG #16ER115NPTPR1115
Laydown Threading Insert ; 11.5 TPI ; 3/8″ IC ; American National Pipe [NPT] ; Carbide ; PR1115 ; TiAlN

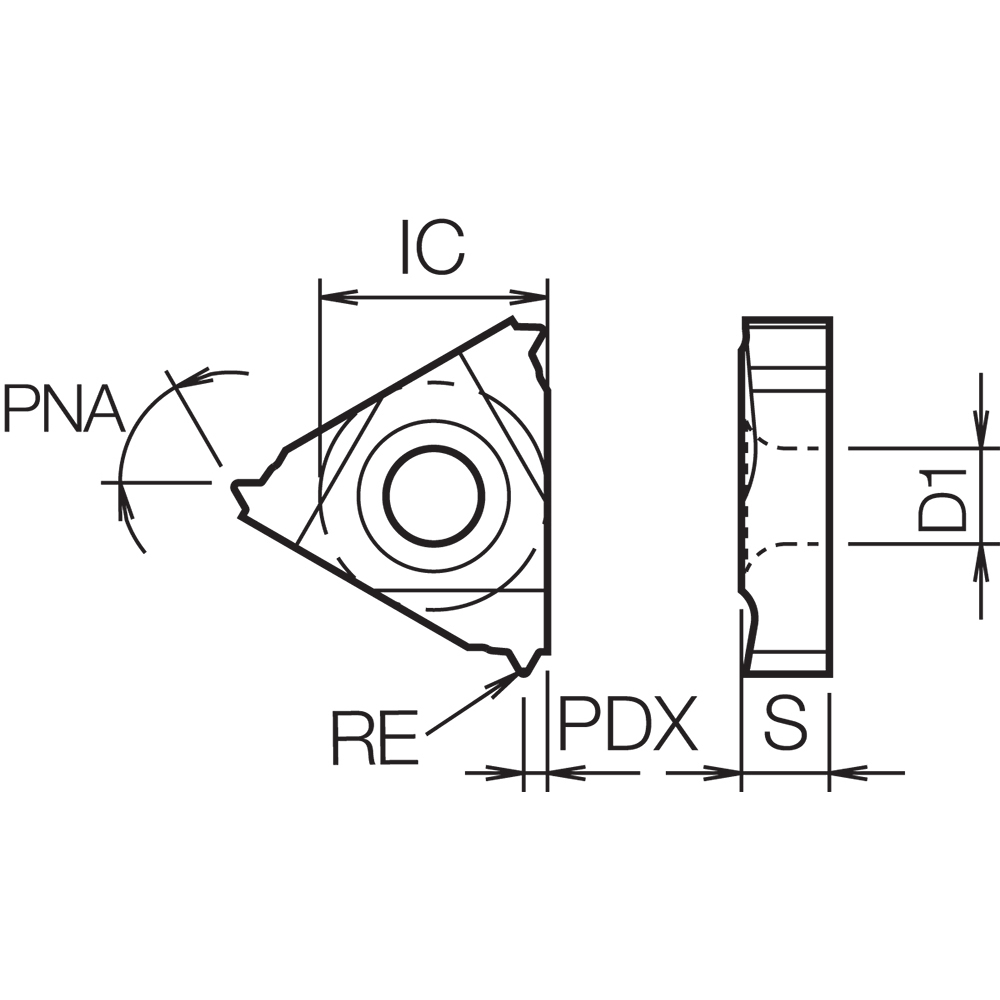

| Thread Standard | American National Pipe [NPT] | Applicable Material | | Steel | |
| Inscribed Circle Diameter (IC) | 3/8″ | Insert Style | 16 |
| Threads per Inch (TPI) | 11.5 | Mounting Style | Clamp or Screw |
| Corner Radius (RE) | 0.0024″ | Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 0.145″ | Angle | 60 Degrees |
| Grade | PR1115 | Cutting Item Count (CICT) | 3 |
| Coating | TiAlN | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Hole Diameter | 0.157″ |
| Cutting Position | External | Insert Seat Size Code (SSC) | 11.5 |
| Application | External Threading |
Product Features
| Family Description | Alternate Manufacture # 16ER115NPTPR1115 | Country of Origin | Japan |
Shipping Info
Package Weight
.0796
