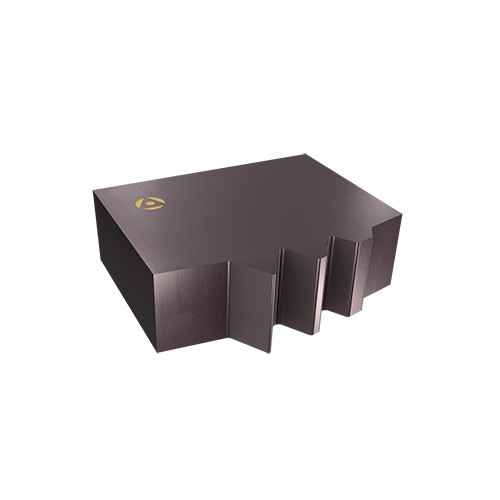

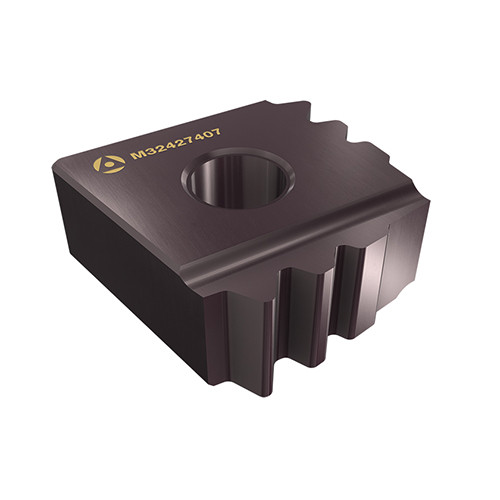

CR-8R-3E #1 TD3064 AC50F
Laydown Threading Insert ; 3 mm TP ; 8 TPI ; 60 Triangle Shape ; 0.63″ Length ; THFT | ; Carbide ; AC50F ; AlTiN
| Thread Standard | THFT | | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Insert Length (INSL) | 0.63″ | Shape | 60° Triangle |
| Thread Pitch (TP) | 3 mm | Cutting Item Count (CICT) | 2 |
| Threads per Inch (TPI) | 8 | Thread Pitch Maximum (TPX) | 0.577″ |
| Corner Radius (RE) | 0.21 mm | Tool Type | Threading Regular Inserts |
| Insert Thickness (S) | 0.204″ | Measurement Type | Inch |
| Grade | AC50F | Body Material | Carbide |
| Coating | AlTiN | Number of Teeth | 3 |
| Cutting Edge Material | Carbide | Cutting Edge Length (L) | 0.63″ |
| Cutting Position | Internal | Thread Form Type (THFT) | M60 |
| Application | | Internal Thread Milling | Internal Threading lay down | Treading Inserts | | Height | 0.577″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.38
