16 ER12UNTF PR1115 INSERT ALT MFG #16ER12UNTFPR1115

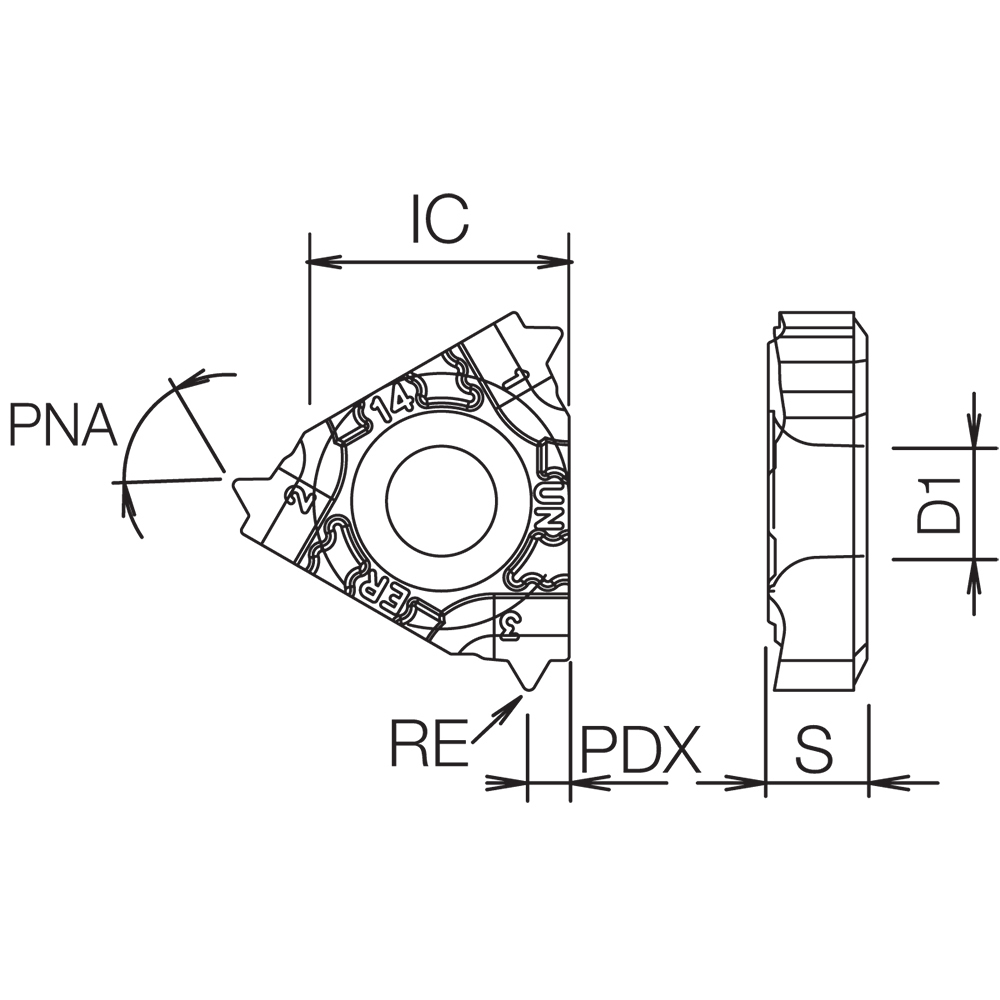

Laydown Threading Insert ; 12 TPI ; 3/8″ IC ; Unified (UN) ; Carbide ; PR1115 ; TiAlN
| Thread Standard | Unified (UN) | Applicable Material | | Steel | |
| Inscribed Circle Diameter (IC) | 3/8″ | Insert Style | 16 |
| Threads per Inch (TPI) | 12 | Mounting Style | Clamp or Screw |
| Corner Radius (RE) | 0.0106″ | Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 0.145″ | Chip Breaker Type | TF |
| Grade | PR1115 | Angle | 60 Degrees |
| Coating | TiAlN | Cutting Item Count (CICT) | 3 |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Cutting Position | External | Hole Diameter | 0.157″ |
| Application | External Threading | Insert Seat Size Code (SSC) | 12 |
Product Features
| Family Description | Alternate Manufacture # 16ER12UNTFPR1115 | Country of Origin | Japan |
Shipping Info
Package Weight
.0765
