16 ERAG60TF PR1215 Grade PVD Carbide, Indexable Threading Insert
Laydown Threading Insert ; 0.5 mm - 3 mm TP ; 48-8 TPI ; 3/8″ IC ; Metric | UN ; Carbide ; PR1215 ; MEGACOAT ; Series LDT
| Thread Standard | Metric | UN | Applicable Material | | Super-Alloys / Titanium | |

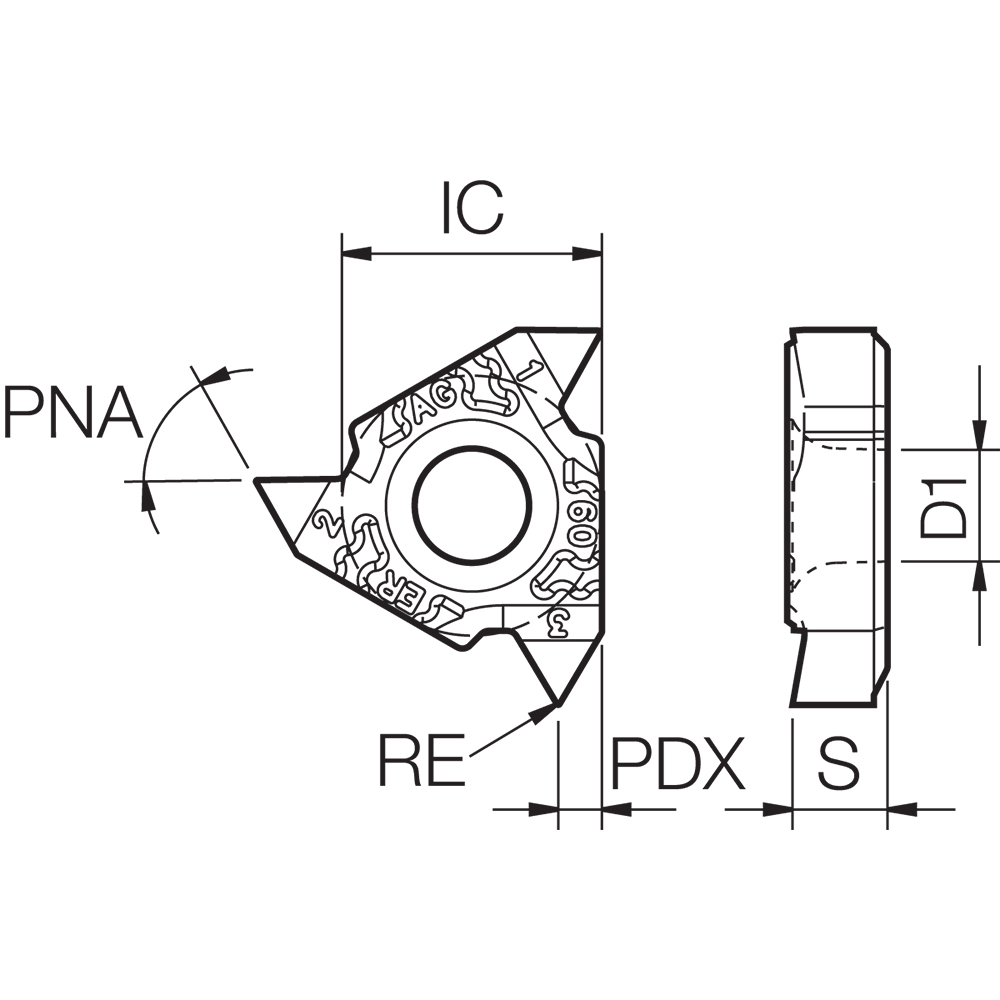

| Inscribed Circle Diameter (IC) | 3/8″ | Insert Style | 16ER |
| Thread Pitch (TP) | 0.5 mm - 3 mm | Mounting Style | Clamp | Screw |
| Threads per Inch (TPI) | 48-8 | Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.002″ | Chip Breaker Type | TF |
| Insert Thickness (S) | 0.145″ | Cutting Item Count (CICT) | 3 |
| Grade | PR1215 | Series/List # | LDT |
| Coating | MEGACOAT | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Hole Diameter | 0.1575″ |
| Cutting Position | External | Profile Included Angle (PNA) | 60 Degrees |
| Application | External Threading |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.131
