16 IR200TR PR1115 Grade PVD Carbide, Indexable Threading Insert
Laydown Threading Insert ; 2 mm TP ; 9.525 mm IC ; Trapezoidal (Tr) ; Carbide ; PR1115 ; TiAlN ; Series LDT
| Thread Standard | Trapezoidal (Tr) | Applicable Material | | Stainless Steel | Super-Alloys / Titanium | |

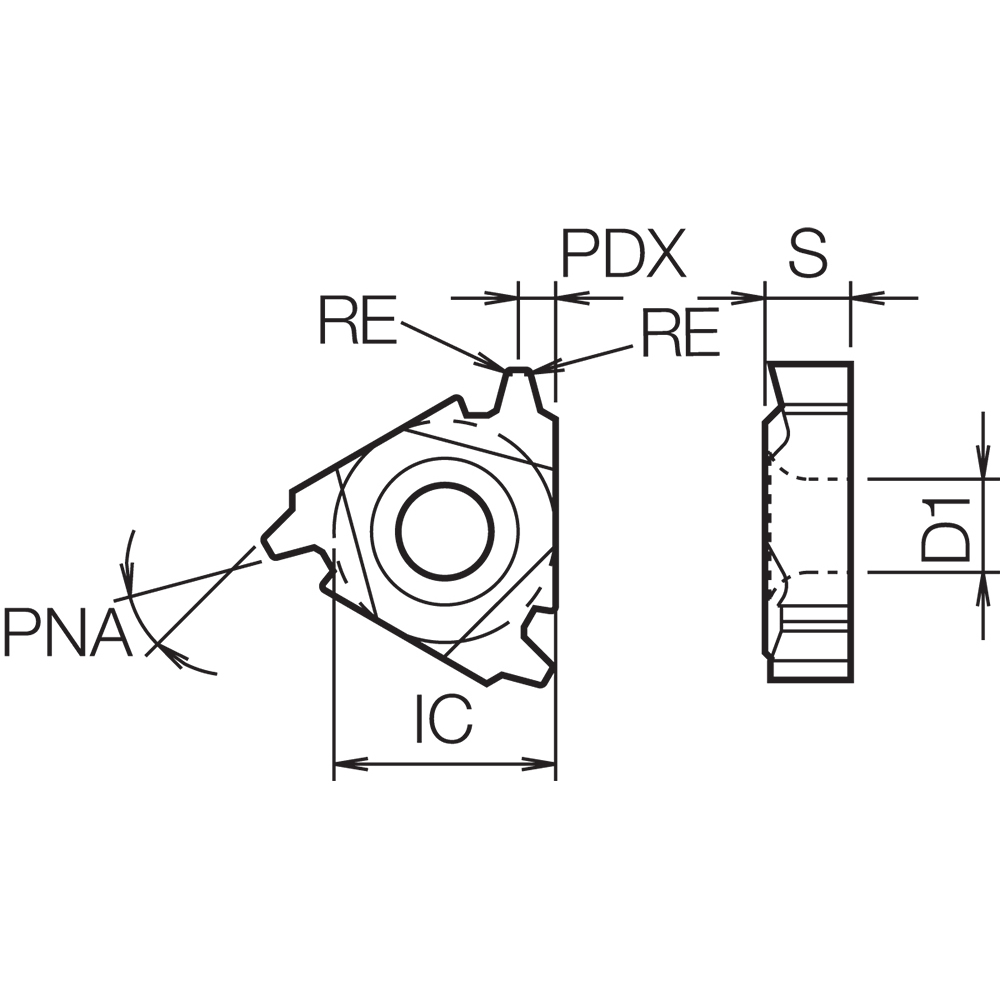

| Inscribed Circle Diameter (IC) | 9.525 mm | Insert Style | 16IR |
| Thread Pitch (TP) | 2 mm | Mounting Style | Clamp | Screw |
| Corner Radius (RE) | 0.2 mm | Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 3.68 mm | Cutting Item Count (CICT) | 3 |
| Grade | PR1115 | Series/List # | LDT |
| Coating | TiAlN | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Hole Diameter | 4 mm |
| Cutting Position | Internal | Profile Included Angle (PNA) | 30 Degrees |
| Application | Internal Threading |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.079
