16 IR175ISOTF PR1115 Grade PVD Carbide, Indexable Threading Insert

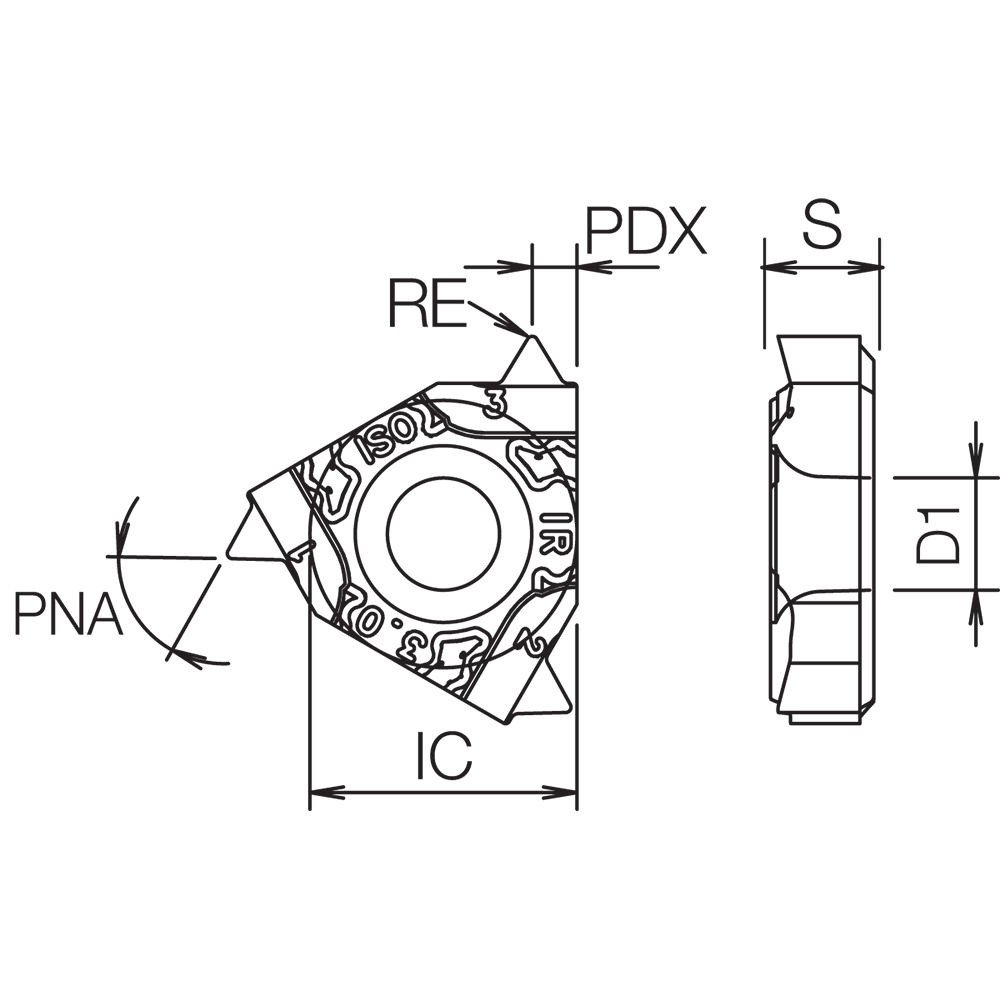

Laydown Threading Insert ; 1.75 mm TP ; 9.525 mm IC ; Metric ; Carbide ; PR1115 ; TiAlN ; Series LDT
| Thread Standard | Metric | Applicable Material | | Steel | Stainless Steel | |
| Inscribed Circle Diameter (IC) | 9.525 mm | Insert Style | 16IR |
| Thread Pitch (TP) | 1.75 mm | Mounting Style | Clamp | Screw |
| Corner Radius (RE) | 0.12 mm | Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 3.68 mm | Chip Breaker Type | TF |
| Grade | PR1115 | Cutting Item Count (CICT) | 3 |
| Coating | TiAlN | Series/List # | LDT |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Cutting Position | Internal | Hole Diameter | 4 mm |
| Application | Internal Threading | Profile Included Angle (PNA) | 60 Degrees |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.080
