22 ER300ISO PR1115 Grade PVD Carbide, Indexable Threading Insert
Laydown Threading Insert ; 3 mm TP ; 12.7 mm IC ; Metric ; Carbide ; PR1115 ; TiAlN ; Series LDT

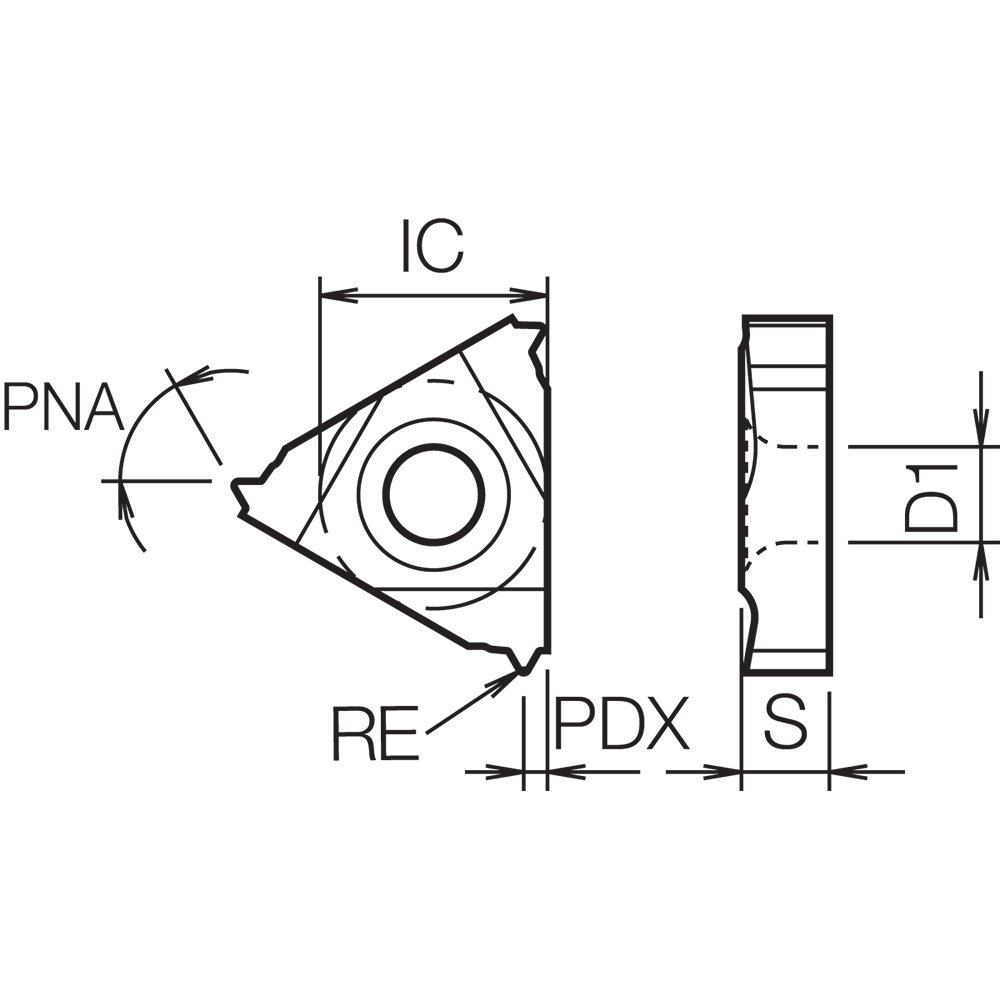

| Thread Standard | Metric | Applicable Material | | Steel | Stainless Steel | |
| Inscribed Circle Diameter (IC) | 12.7 mm | Insert Style | 22ER |
| Thread Pitch (TP) | 3 mm | Mounting Style | Clamp | Screw |
| Corner Radius (RE) | 0.41 mm | Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 4.9 mm | Cutting Item Count (CICT) | 3 |
| Grade | PR1115 | Series/List # | LDT |
| Coating | TiAlN | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Hole Diameter | 4.85 mm |
| Cutting Position | External | Profile Included Angle (PNA) | 60 Degrees |
| Application | External Threading |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.162
