06 IR60005 PR1115 Grade PVD Carbide, Indexable Threading Insert
Laydown Threading Insert ; 0.75 mm - 1.25 mm TP ; 28-20 TPI ; 5/32″ IC ; Metric | UN ; Carbide ; PR1115 ; TiAlN ; Series LDT
| Thread Standard | Metric | UN | Application | Internal Threading |

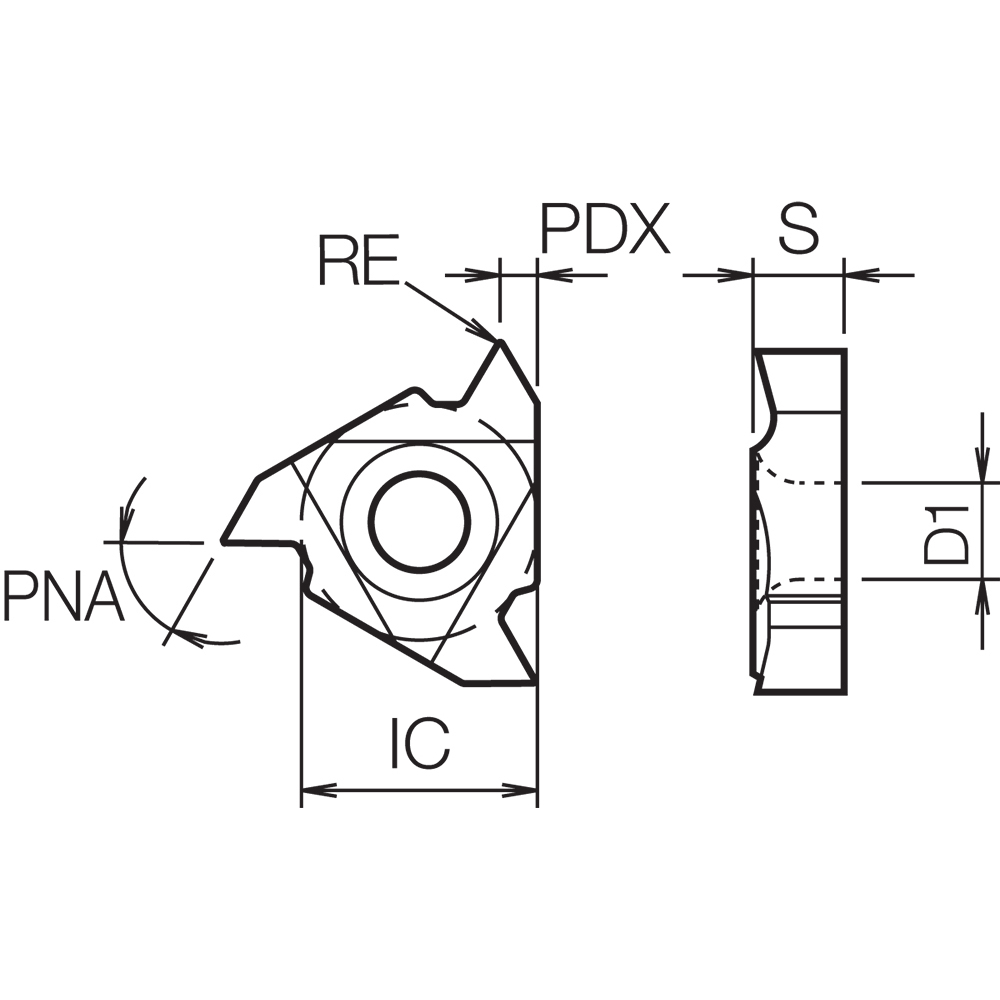

| Inscribed Circle Diameter (IC) | 5/32″ | Applicable Material | | Stainless Steel | Super-Alloys / Titanium | |
| Thread Pitch (TP) | 0.75 mm - 1.25 mm | Insert Style | 06IR |
| Threads per Inch (TPI) | 28-20 | Mounting Style | Clamp | Screw |
| Corner Radius (RE) | 0.002″ | Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 0.075″ | Cutting Item Count (CICT) | 3 |
| Grade | PR1115 | Series/List # | LDT |
| Coating | TiAlN | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Hole Diameter | 0.0906″ |
| Cutting Position | Internal | Profile Included Angle (PNA) | 60 Degrees |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.034
