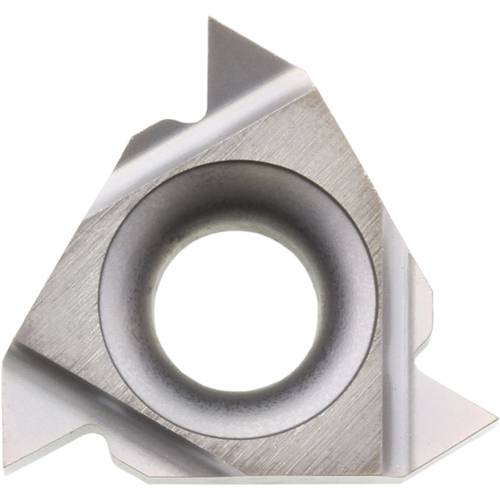

16 IRA60 GW15 Grade Uncoated Carbide, Indexable Threading Insert
Laydown Threading Insert ; 0.5 mm - 1.5 mm TP ; 48-16 TPI ; 3/8″ IC ; Metric | UN ; Carbide ; GW15 ; Uncoated ; Series LDT
| Thread Standard | Metric | UN | Application | Internal Threading |
| Inscribed Circle Diameter (IC) | 3/8″ | Applicable Material | | Cast Iron | |
| Thread Pitch (TP) | 0.5 mm - 1.5 mm | Insert Style | 16IR |
| Threads per Inch (TPI) | 48-16 | Mounting Style | Clamp | Screw |
| Corner Radius (RE) | 0.001″ | Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 0.145″ | Cutting Item Count (CICT) | 3 |
| Grade | GW15 | Series/List # | LDT |
| Coating | Uncoated | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Hole Diameter | 0.1575″ |
| Cutting Position | Internal | Profile Included Angle (PNA) | 60 Degrees |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.074
