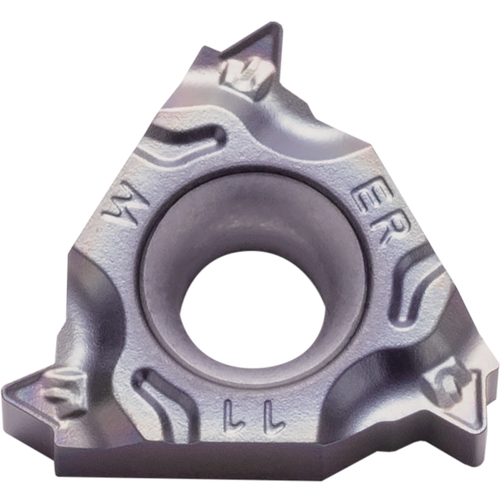

16 ER11WTQ PR1535 Grade PVD Carbide, Indexable Threading Insert
Laydown Threading Insert ; 11 TPI ; 3/8″ IC ; G | Whit Worth ; Carbide ; PR1535 ; MEGACOAT NANO ; Series LDT

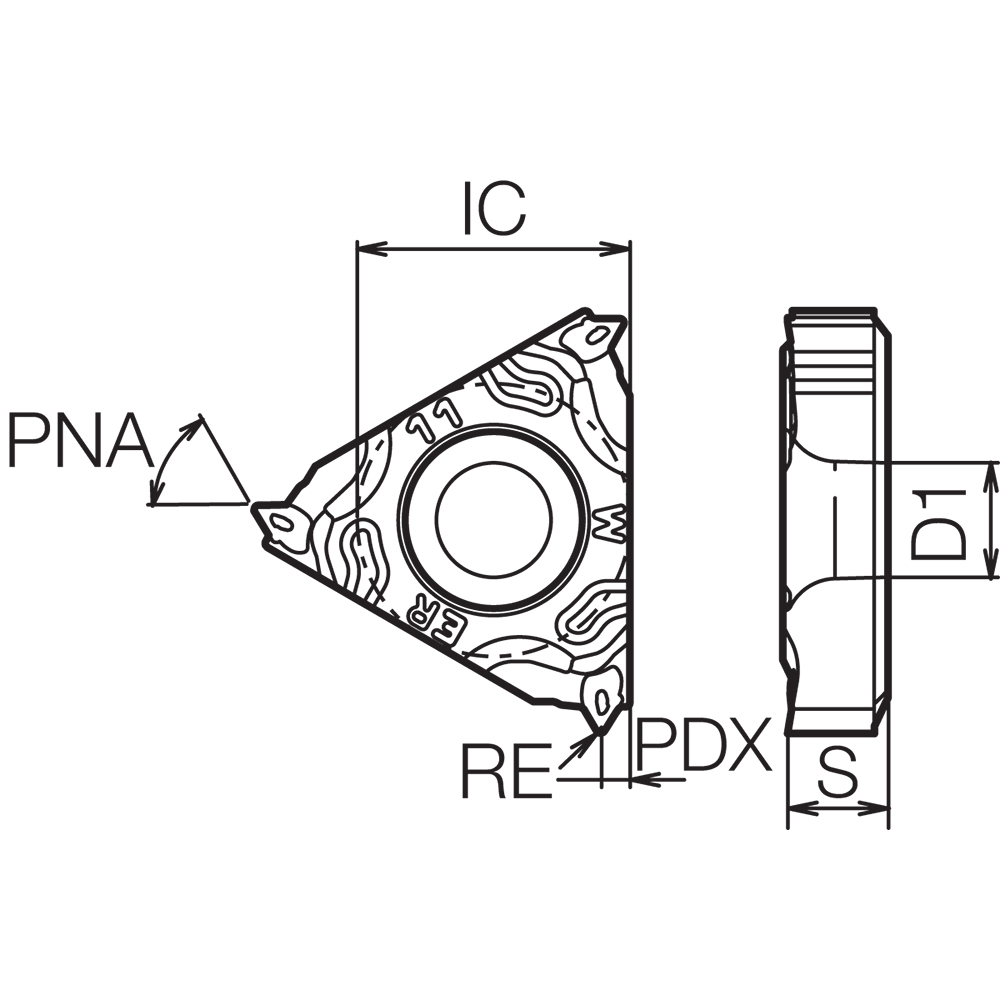

| Thread Standard | G | Whit Worth | Applicable Material | | Stainless Steel | |
| Inscribed Circle Diameter (IC) | 3/8″ | Insert Style | 16ER |
| Threads per Inch (TPI) | 11 | Mounting Style | Clamp | Screw |
| Corner Radius (RE) | 0.012″ | Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 0.145″ | Chip Breaker Type | TQ |
| Grade | PR1535 | Cutting Item Count (CICT) | 3 |
| Coating | MEGACOAT NANO | Series/List # | LDT |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Cutting Position | External | Hole Diameter | 0.1575″ |
| Application | External Threading | Profile Included Angle (PNA) | 55 Degrees |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.075
