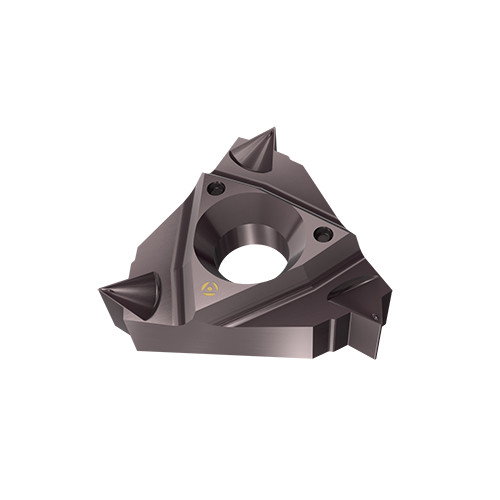

16ER 10 API RD-CB AC50C
Laydown Threading Insert ; 10 TPI ; 0.649″ Length ; 3/8″ IC ; THFT | ; Carbide ; AC50C ; TiAlN
| Thread Standard | THFT | | Applicable Material | | Steel | Stainless Steel | |
| Inscribed Circle Diameter (IC) | 3/8″ | Insert Style | Laydown (LT) |
| Insert Length (INSL) | 0.649″ | Threads per Inch Minimum (TPIN) | 10 |
| Threads per Inch (TPI) | 10 | Threads per Inch Maximum (TPIX) | 10 |
| Corner Radius (RE) | 0.014″ | Tool Type | Threading Regular Inserts |
| Grade | AC50C | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Cutting Edge Material | Carbide | Number of Teeth | 1 |
| Application | | Ext Threading Laydown | | Profile Distance EY (PDY) | 0.04″ |
Product Features
| Family Description | External Right Hand API Round Profile Laydown Threading Inserts with Chip Control | Country of Origin | USA |
Shipping Info
Package Weight
0.12
