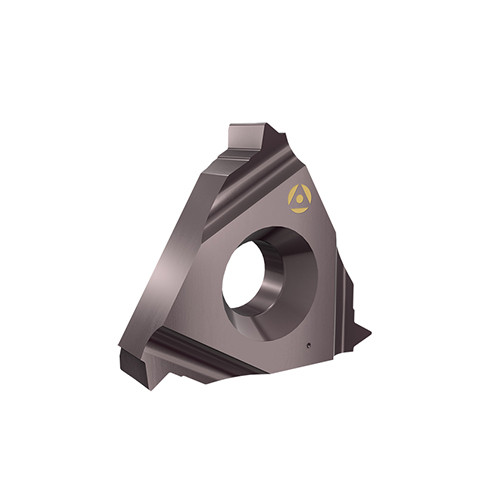

27IR 530 AC22F
Laydown Threading Insert ; 5 Threads/" TPI ; 60 Triangle Shape ; 1.08″ Length ; 5/8″ IC ; THFT | ; Carbide ; AC22F ; TiAlN
| Thread Standard | THFT | | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Inscribed Circle Diameter (IC) | 5/8″ | Insert Style | Laydown (LT) |
| Insert Length (INSL) | 1.08″ | Threads per Inch Minimum (TPIN) | 5 |
| Threads per Inch (TPI) | 5 | Threads per Inch Maximum (TPIX) | 5 |
| Corner Radius (RE) | 0″ | Thread Pitch Minimum (TPN) | 0 mm |
| Grade | AC22F | Tool Type | Threading Regular Inserts |
| Coating | TiAlN | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Application | | Int Threading Laydown | |
Product Features
| Family Description | Internal Right Hand API Rotary Shoulder Connection Profile Laydown Threading Inserts | Country of Origin | USA |
Shipping Info
Package Weight
0.001
