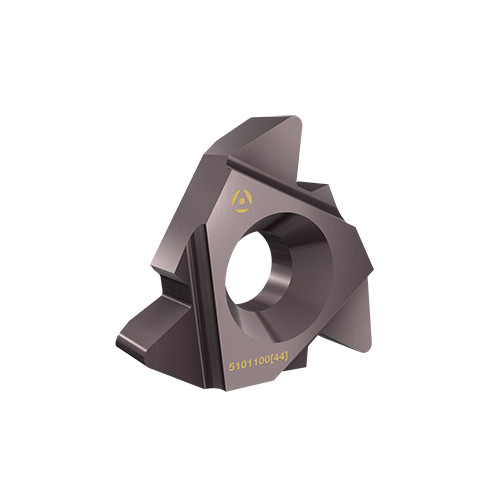

27ER 435 AC22F
Laydown Threading Insert ; 0 mm TP ; 4 TPI ; 0.108″ Length ; 5/8″ IC ; THFT | ; Carbide ; AC22F ; TiAlN
| Thread Standard | THFT | | Application | | Ext Threading Laydown | |
| Inscribed Circle Diameter (IC) | 5/8″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Insert Length (INSL) | 0.108″ | Insert Style | Laydown (LT) |
| Thread Pitch (TP) | 0 mm | Threads per Inch Minimum (TPIN) | 4 |
| Threads per Inch (TPI) | 4 | Threads per Inch Maximum (TPIX) | 4 |
| Corner Radius (RE) | 0″ | Tool Type | Threading Regular Inserts |
| Grade | AC22F | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | External Right Hand API Rotary Shoulder Connection Full Profile Laydown Threading Inserts | Country of Origin | USA |
Shipping Info
Package Weight
0.001
