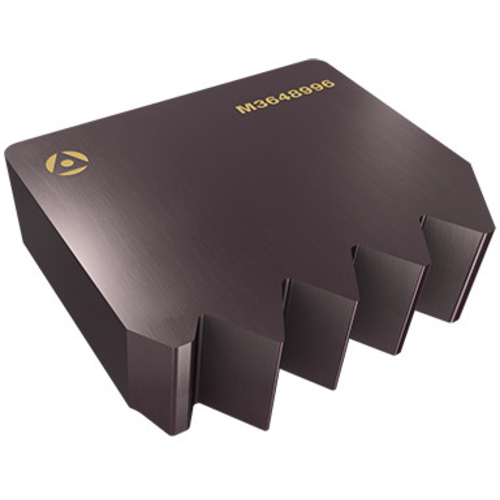

CR-8NPT-4E TF8996 G50C
Laydown Threading Insert ; 3 mm TP ; 8 TPI ; 60 Triangle Shape ; 5/8″ Length ; THFT | ; Carbide ; G50C ; TiN | TiC
| Thread Standard | THFT | | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Insert Length (INSL) | 5/8″ | Shape | 60° Triangle |
| Thread Pitch (TP) | 3 mm | Cutting Item Count (CICT) | 2 |
| Threads per Inch (TPI) | 8 | Thread Pitch Maximum (TPX) | 0.62″ |
| Corner Radius (RE) | 0.21 mm | Tool Type | Threading Regular Inserts |
| Insert Thickness (S) | 0.204″ | Measurement Type | Inch |
| Grade | G50C | Body Material | Carbide |
| Coating | TiN | TiC | Number of Teeth | 4 |
| Cutting Edge Material | Carbide | Cutting Edge Length (L) | 0.63″ |
| Cutting Position | Internal | Thread Form Type (THFT) | M60 |
| Application | | Internal Thread Milling | Internal Threading lay down | Treading Inserts | | Height | 0.62″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.54
