16 ER100ISOTQ PR1515 Grade PVD Carbide, Indexable Threading Insert
Laydown Threading Insert ; 1 mm TP ; 9.525 mm IC ; Metric ; Carbide ; PR1515 ; MEGACOAT NANO ; Series LDT

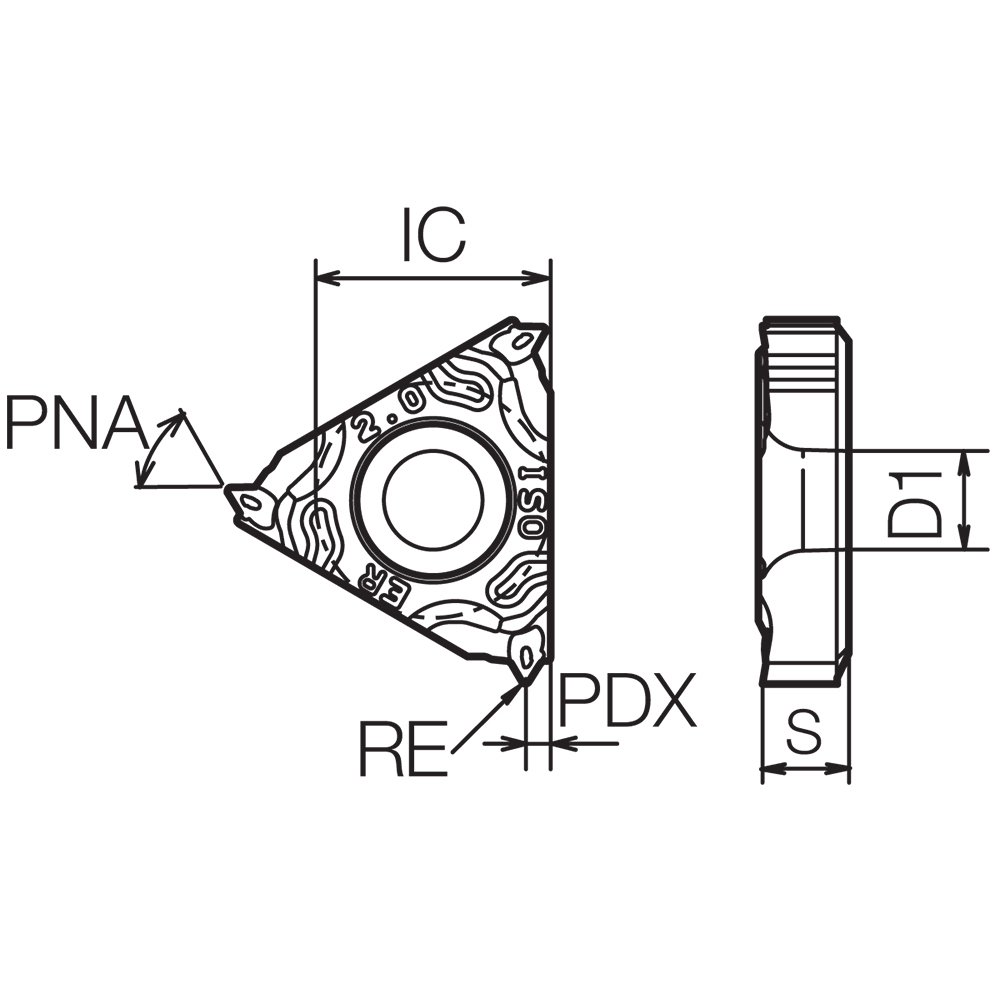

| Thread Standard | Metric | Applicable Material | | Stainless Steel | |
| Inscribed Circle Diameter (IC) | 9.525 mm | Insert Style | 16ER |
| Thread Pitch (TP) | 1 mm | Mounting Style | Clamp | Screw |
| Corner Radius (RE) | 0.12 mm | Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 3.68 mm | Chip Breaker Type | TQ |
| Grade | PR1515 | Cutting Item Count (CICT) | 3 |
| Coating | MEGACOAT NANO | Series/List # | LDT |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Cutting Position | External | Hole Diameter | 4 mm |
| Application | External Threading | Profile Included Angle (PNA) | 60 Degrees |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.084
