11 IR14BSPTTQ PR1535 Grade PVD Carbide, Indexable Threading Insert
Laydown Threading Insert ; 14 TPI ; 1/4″ IC ; BSPT ; Carbide ; PR1535 ; MEGACOAT NANO ; Series LDT

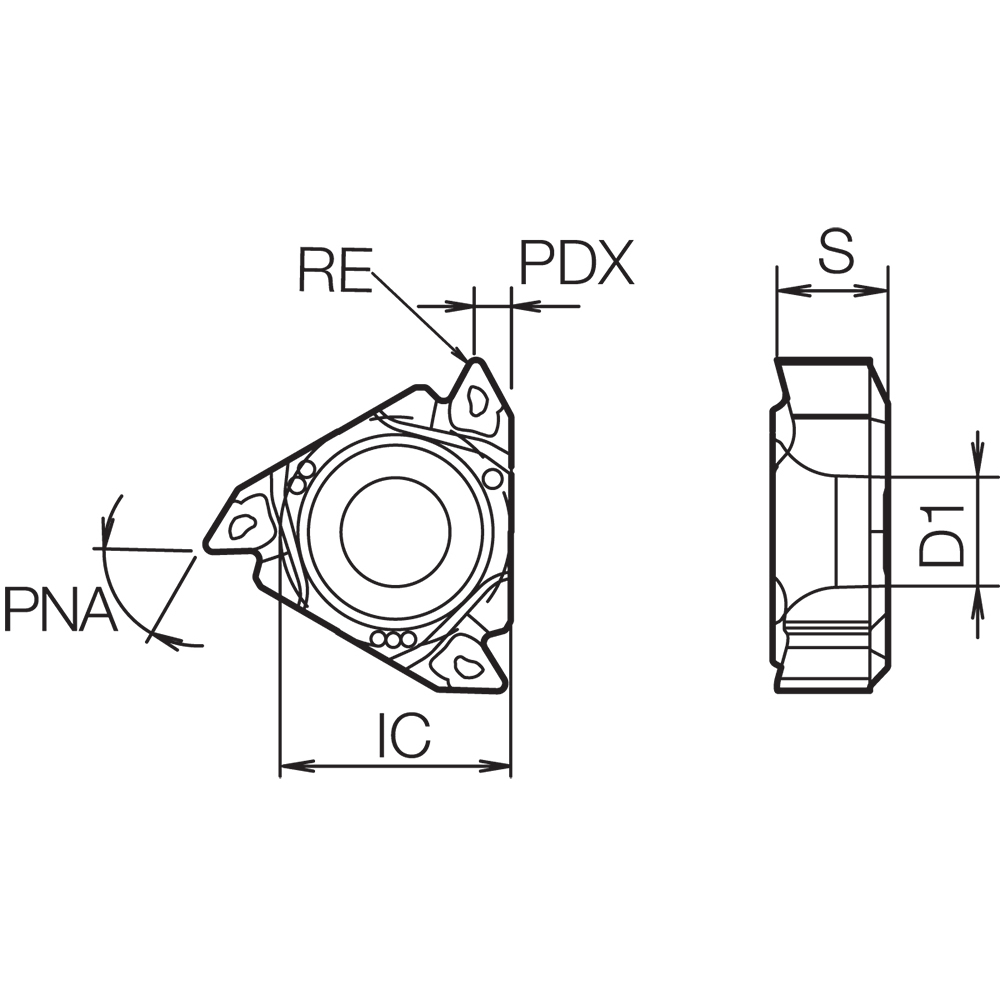

| Thread Standard | BSPT | Applicable Material | | Stainless Steel | |
| Inscribed Circle Diameter (IC) | 1/4″ | Insert Style | 11IR |
| Threads per Inch (TPI) | 14 | Mounting Style | Clamp | Screw |
| Corner Radius (RE) | 0.009″ | Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 1/8″ | Chip Breaker Type | TQ |
| Grade | PR1535 | Cutting Item Count (CICT) | 3 |
| Coating | MEGACOAT NANO | Series/List # | LDT |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Cutting Position | Internal | Hole Diameter | 0.1181″ |
| Application | Internal Threading | Profile Included Angle (PNA) | 55 Degrees |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.046
