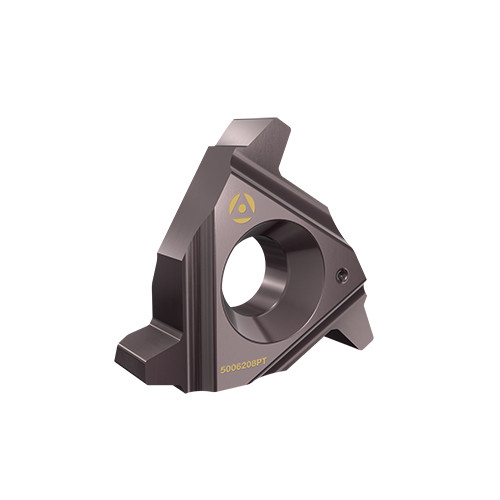

16EL 10ACME PT AC22C
Laydown Threading Insert ; 10 TPI ; 0.497″ Length ; 3/8″ IC ; THFT | ; Carbide ; AC22C ; TiAlN
| Thread Standard | THFT | | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Inscribed Circle Diameter (IC) | 3/8″ | Insert Style | Laydown (LT) |
| Insert Length (INSL) | 0.497″ | Threads per Inch Minimum (TPIN) | 10 |
| Threads per Inch (TPI) | 10 | Threads per Inch Maximum (TPIX) | 10 |
| Corner Radius (RE) | 0.004″ | Tool Type | Threading Regular Inserts |
| Grade | AC22C | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Cutting Edge Material | Carbide | Profile Distance EY (PDY) | 0.05″ |
| Application | | Ext Threading Laydown | |
Product Features
| Family Description | External Left Hand ACME Partial Cresting Laydown Threading Inserts | Country of Origin | USA |
Shipping Info
Package Weight
0.12
