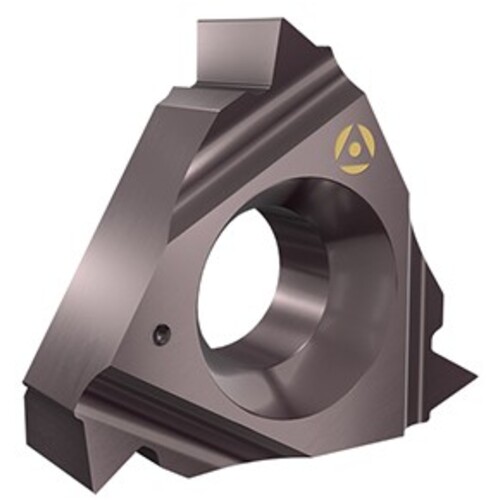

16IR 12STACME PT AC22R
Laydown Threading Insert ; 3 mm TP ; 12 TPI ; 60 Triangle Shape ; 0.63″ Length ; 3/8″ IC ; THFT | ; Carbide ; AC22R ; AlTiN
| Thread Standard | THFT | | Cutting Position | Internal |
| Inscribed Circle Diameter (IC) | 3/8″ | Application | | Internal Thread Milling | Internal Threading lay down | Treading Inserts | |
| Insert Length (INSL) | 0.63″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Thread Pitch (TP) | 3 mm | Cutting Direction (HAND) | Right Hand |
| Threads per Inch (TPI) | 12 | Shape | 60° Triangle |
| Corner Radius (RE) | 0.21 mm | Cutting Item Count (CICT) | 2 |
| Cutting Width (CW) | 0.0326″ | Tool Type | Threading Regular Inserts |
| Grade | AC22R | Measurement Type | Inch |
| Coating | AlTiN | Body Material | Carbide |
| Cutting Edge Material | Carbide | Thread Form Type (THFT) | M60 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.12
