CR 5B75 3E TF1296 G50Z4

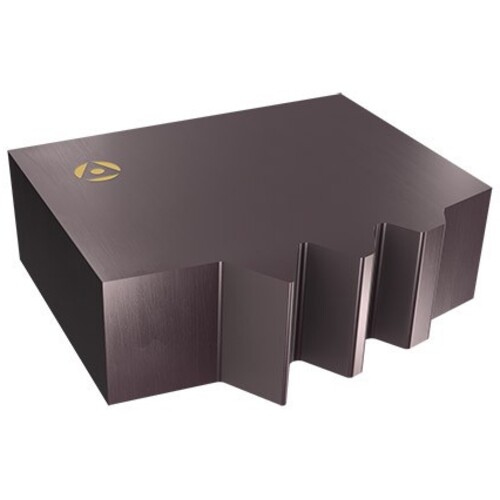

Laydown Threading Insert ; 3 mm TP ; 5 TPI ; 60 Triangle Shape ; 0.67″ Length ; THFT | ; Carbide ; G50Z4 ; TiN | TiC
| Thread Standard | THFT | | Cutting Position | Internal |
| Insert Length (INSL) | 0.67″ | Application | | Internal Thread Milling | Internal Threading lay down | Treading Inserts | |
| Thread Pitch (TP) | 3 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Threads per Inch (TPI) | 5 | Shape | 60° Triangle |
| Corner Radius (RE) | 0.21 mm | Cutting Item Count (CICT) | 2 |
| Insert Thickness (S) | 0.204″ | Tool Type | Threading Regular Inserts |
| Grade | G50Z4 | Measurement Type | Inch |
| Coating | TiN | TiC | Body Material | Carbide |
| Cutting Edge Material | Carbide | Thread Form Type (THFT) | M60 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.38
