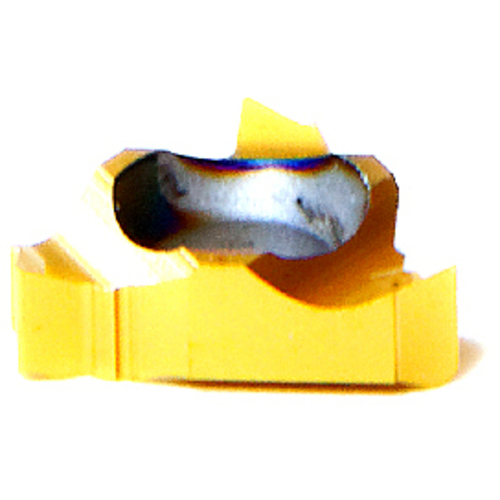

06 IR A55 BXC THREADING INSERT
Laydown Threading Insert ; 0.5 mm - 1.25 mm TP ; 20-48 TPI ; 6 mm IC ; 55-DEG PART PROF ; Carbide ; BXC ; TiN
| Thread Standard | 55-DEG PART PROF | Cutting Position | Internal |
| Inscribed Circle Diameter (IC) | 6 mm | Applicable Material | | Stainless Steel | |
| Thread Pitch (TP) | 0.5 mm - 1.25 mm | Insert Style | THREADING INSERTS - 06 |
| Threads per Inch (TPI) | 20-48 | Cutting Direction (HAND) | Right Hand |
| Grade | BXC | Cutting Item Count (CICT) | 3 |
| Coating | TiN | Measurement Type | | Inch | Metric | |
| Cutting Edge Material | Carbide |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Weight
.000
