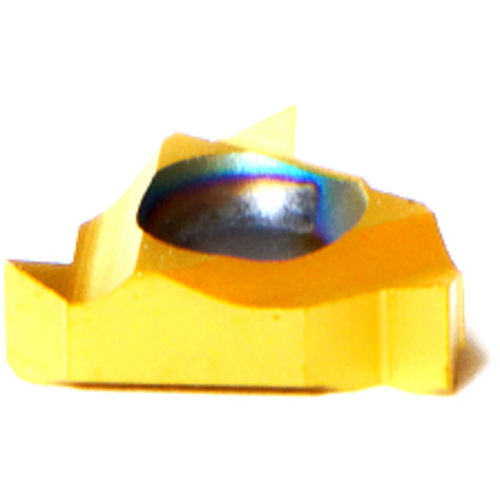

08ILA60 BXC THREAD INSERT
Laydown Threading Insert ; 0.5 mm - 1.5 mm TP ; 16-48 TPI ; 8 mm IC ; 60-DEG PART PROF ; Carbide ; BXC ; TiN
| Thread Standard | 60-DEG PART PROF | Cutting Position | Internal |
| Inscribed Circle Diameter (IC) | 8 mm | Applicable Material | | Stainless Steel | |
| Thread Pitch (TP) | 0.5 mm - 1.5 mm | Insert Style | THREADING INSERTS - 08 & 08U |
| Threads per Inch (TPI) | 16-48 | Cutting Direction (HAND) | Left Hand |
| Grade | BXC | Cutting Item Count (CICT) | 3 |
| Coating | TiN | Measurement Type | | Inch | Metric | |
| Cutting Edge Material | Carbide |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Weight
0.001
