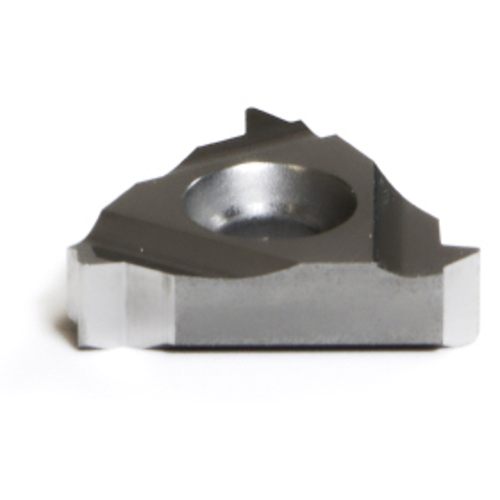

16ELG60P30 CARMEX INSERT
Laydown Threading Insert ; 1.75 mm - 3 mm TP ; 8-14 TPI ; 16 mm IC ; 60-DEG PART PROF ; Carbide ; P30 ; Uncoated
| Thread Standard | 60-DEG PART PROF | Cutting Position | External |
| Inscribed Circle Diameter (IC) | 16 mm | Applicable Material | | Steel | |
| Thread Pitch (TP) | 1.75 mm - 3 mm | Insert Style | THREADING INSERTS - 16 & 16U |
| Threads per Inch (TPI) | 8-14 | Cutting Direction (HAND) | Left Hand |
| Grade | P30 | Cutting Item Count (CICT) | 3 |
| Coating | Uncoated | Measurement Type | | Inch | Metric | |
| Cutting Edge Material | Carbide |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Weight
.005
