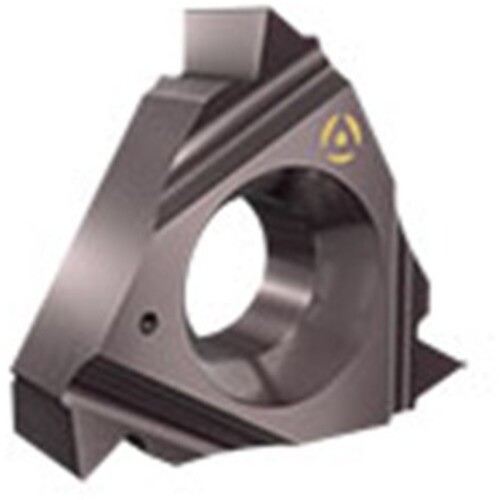

16IR AG60 AC22A
Laydown Threading Insert ; 60 Triangle Shape ; 0.649″ Length ; 3/8″ IC ; THFT | ; Carbide ; AC22A ; TiAlN
| Thread Standard | THFT | | Shape | 60° Triangle |
| Inscribed Circle Diameter (IC) | 3/8″ | Cutting Item Count (CICT) | 2 |
| Insert Length (INSL) | 0.649″ | Threads per Inch Minimum (TPIN) | 8 |
| Corner Radius (RE) | 0.002″ | Threads per Inch Maximum (TPIX) | 48 |
| Grade | AC22A | Thread Pitch Minimum (TPN) | 0.5 mm |
| Coating | TiAlN | Thread Pitch Maximum (TPX) | 3 mm |
| Cutting Edge Material | Carbide | Tool Type | Threading Regular Inserts |
| Cutting Position | Internal | Measurement Type | Inch |
| Application | | Internal Thread Milling | Internal Threading lay down | Threading Inserts | | Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Thread Form Type (THFT) | VP60 |
| Insert Style | Laydown (LT) | Profile Distance EY (PDY) | 0.0472″ |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | Internal Right Hand Laydown Threading Inserts with a 60° Partial Profile for General Industries | Country of Origin | Israel |
Shipping Info
Package Weight
0.003
