PTM43K40504E02 HW2

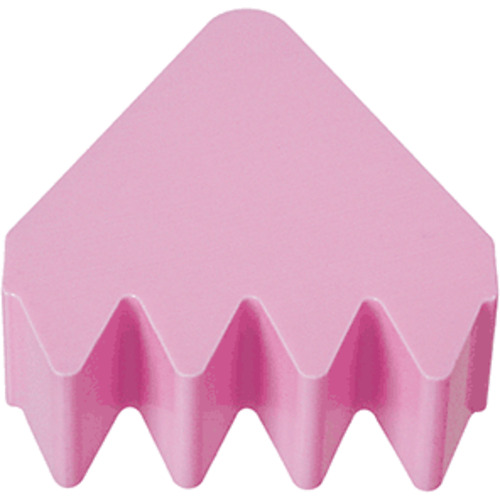

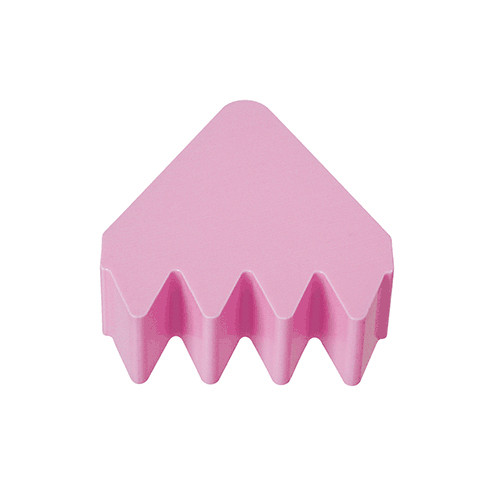

Laydown Threading Insert ; HW2

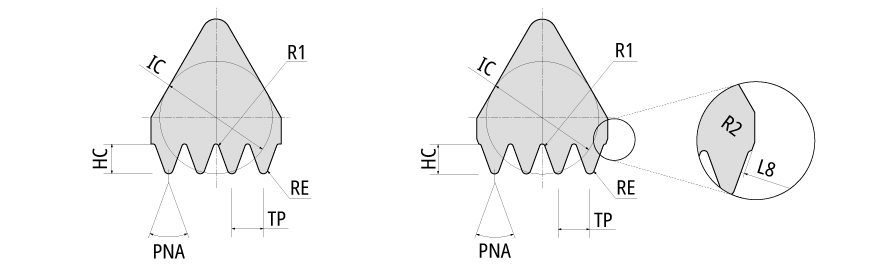

| Corner Radius (RE) | 0.0197″ | Applicable Material | | Cast Iron | |
| Insert Thickness (S) | 0.187″ | Thread Pitch Minimum (TPN) | 3.56 mm |
| Inscribed Circle Diameter (IC) | 1/2″ | Profile Included Angle (PNA) | 40 Degrees |
| Grade | HW2 | Measurement Type | Inch |
| Cutting Edge Material | Ceramic | Body Material | Carbide |
| Application | | Inserts for turning & grooving | |
Product Features
| Country of Origin | Japan |
