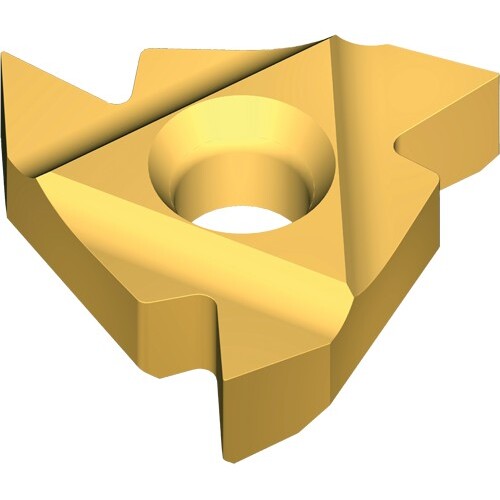

3ELG60VKX 3/8 IC - Profile Threading Insert
Laydown Threading Insert ; 0.50-30.0 TP ; 14-8 TPI ; 3/8″ IC ; VKX
Additional Tariff Surcharge of 10 %
| Inscribed Circle Diameter (IC) | 3/8″ | Cutting Position | External |
| Thread Pitch (TP) | 0.50-30.0 | Applicable Material | | Steel | Stainless Steel | |
| Threads per Inch (TPI) | 14-8 | Cutting Direction (HAND) | Left Hand |
| Grade | VKX | Tool Type | 60° Partial Profile Threading Insert |
Product Features
| Remarks | •60° Partial Profile Threading Inserts •The V (partial) - Profile Inserts cut without "topping" the O.D. of the thread. The same insert can be used for a range of different thread pitches. They are stocked in 60° thread angle and are supplied in boxes of 10, with two Allen screws and one key. They are made for Right Hand (RH) and Left Hand (LH), for Internal (IN) and External (EX) threading. To avoid confusion, the different pitch ranges have been defined by letters A, AG, G, N, U, Q, T - see below. •VKX= Submicron grain TiN Coated. Designed for stainless steel, bronze, brass, inconel. | Country of Origin | USA |
Shipping Info
Package Length
2.50000
Package Width
1.25000
Package Height
1.00000
Package Weight
0.005
