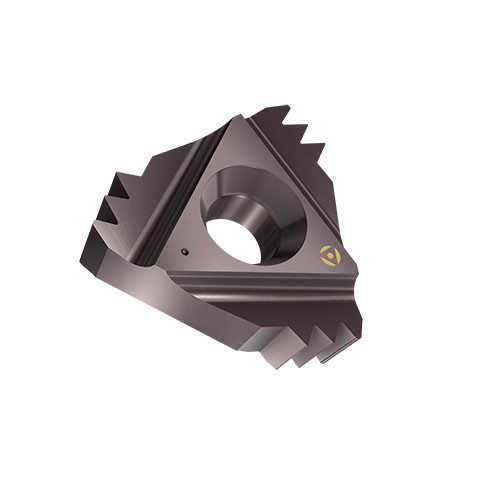

27ER 11.5 NPT 3M AC22D
Laydown Threading Insert ; 11.5 Threads/" TPI ; 60 Triangle Shape ; 1.08″ Length ; 5/8″ IC ; THFT | ; Carbide ; AC22D ; TiAlN
| Thread Standard | THFT | | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Inscribed Circle Diameter (IC) | 5/8″ | Insert Style | Laydown (LT) |
| Insert Length (INSL) | 1.08″ | Threads per Inch Minimum (TPIN) | 11.5 |
| Threads per Inch (TPI) | 11.5 | Threads per Inch Maximum (TPIX) | 11.5 |
| Corner Radius (RE) | 0″ | Tool Type | Threading Regular Inserts |
| Grade | AC22D | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Cutting Edge Material | Carbide | Number of Teeth | 0 |
| Application | | External Thread Milling | External Threading | Threading Inserts | |
Product Features
| Family Description | External Right Hand NPT (National Pipe Threads) Full Profile3-Tooth Laydown Thread.Inserts for Steam,Gas and Water Pipes | Country of Origin | USA |
