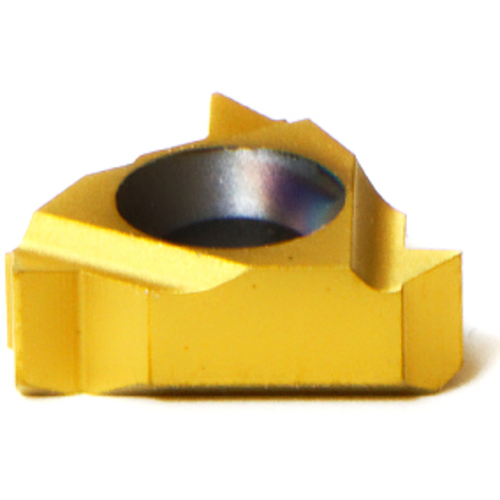

11IR 12UNMXC 1/4 IC - Profile Threading Insert
Laydown Threading Insert ; 12 TPI ; 11 Length ; 1/4″ IC ; UN ; MXC
| Thread Standard | UN | Cutting Position | Internal |
| Inscribed Circle Diameter (IC) | 1/4″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | |
| Insert Length (INSL) | 11 | Cutting Direction (HAND) | Right Hand |
| Threads per Inch (TPI) | 12 | Tool Type | Unified Full Profile Threading Insert |
| Grade | MXC |
Product Features
| Remarks | •UN (Unified) Full Profile Inserts •To form a quality complete thread profile including the crest. For every thread standard and pitch a separate insert is required. Inserts are supplied in packages of 10 inserts and a screw. •Insert Grade SelectionChoose the CARMEX grade specifically formulated for your application. •Uncoated GradesK20 (C–2): Carbide grade for non-ferrous metals, aluminum and cast iron.P30 (C–5): Carbide grade for carbon and cast steels, works well at medium to low cutting speeds. •Coated GradesMXC (C–2TiN): PVD TiN coated micrograin for free cutting untreated alloy steels (below 30 HRC), for stainless steels and cast iron.P25C (C–5 TiN): PVD TiN coated grade for treated and hard alloy steels (25 HRC and up), at medium to low cutting speeds.BMA (C–2 TiAlN): PVD TiAlN coated sub-micrograin grade for stainless steels and exotic materials at medium to high cutting speeds. | Country of Origin | Israel |
Shipping Info
Package Weight
0.002
