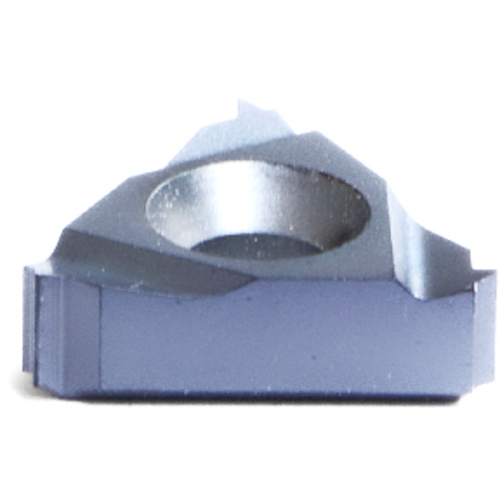

11IRA60BMA CARMEX INSERT
Laydown Threading Insert ; 48-16 TPI ; 11 Length ; 1/4″ IC ; BMA
| Inscribed Circle Diameter (IC) | 1/4″ | Applicable Material | | Steel | Super-Alloys / Titanium | |
| Insert Length (INSL) | 11 | Cutting Direction (HAND) | Right Hand |
| Threads per Inch (TPI) | 48-16 | Angle | 60 Degrees |
| Grade | BMA | Tool Type | 60° Partial Profile Threading Insert |
| Cutting Position | Internal |
Product Features
| Remarks | •Partial Profile 60° Inserts •The V (partial) profile insert cuts without "topping" the O.D. of the thread. The same insert can be used for a range of different thread pitches. Inserts are supplied in packages of 10 inserts and a screw. •Insert Grade SelectionChoose the CARMEX grade specifically formulated for your application. •Uncoated GradesK20 (C–2): Carbide grade for non-ferrous metals, aluminum and cast iron.P30 (C–5): Carbide grade for carbon and cast steels, works well at medium to low cutting speeds. •Coated GradesMXC (C–2TiN): PVD TiN coated micrograin for free cutting untreated alloy steels (below 30 HRC), for stainless steels and cast iron.P25C (C-TiN): PVD TiN coated grade for treated and hard alloy steels (25 HRC and up), at medium to low cutting speeds.BMA (C–2 TiAlN): PVD TiAlN coated sub-micrograin grade for stainless steels and exotic materials at medium to high cutting speeds. | Country of Origin | Israel |
Shipping Info
Package Length
.36000
Package Width
.36000
Package Height
.12000
Package Weight
0.025
